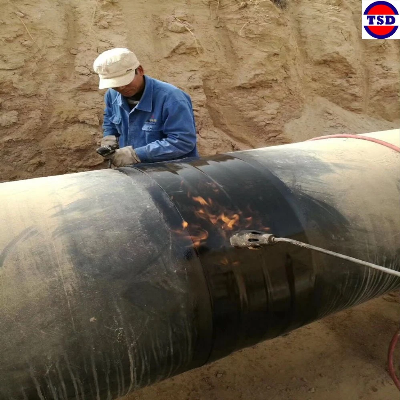

3lpe Coating Pipeline Heat Shrinkable Sleeve

Radiation Cross Linked Heat Shrinkable Sleeves Product profile      Product Description                                                     TSD60 TSD80 HSS, Two-piece, with separate closures designed for the corrosion protection. HSWS is superior performance heat shrinkable products designed for corrosion protection on field applied girth-weld joints of buried and exposed steel pipelines operating up to 80°C (176°F).The inner layer is two-components epoxy primer which coated on steel pipe;Intermediate level is special hot melt adhesive ;Outer layer is modified radiation crossing linking polyethylene backing.Features & Benefits:                                                Heat Shrinkable Sleeves provide great corrosion protection, Superior resistance to Cathodic Disbondment and excellent durability against abrasion and chemical attack. The result is effective, good performance of sealing, wide application, easy to operate and preheating temperature low (50 celsius degree) ,long term protection against corrosion.Easy installationSaves time& moneyRapid & reliable InstallationLong term protectionHSS is a wraparound sleeve with a separate closureCross-linked backing provides superior abrasion, mechanical and chemical attack resistance.High performance adhesive provides excellent resistance to Cathodic   Disbondment to ensure long-term corrosion protection.Just-in-time customized lengths allow bulk rolls to be field cut to protect any pipe sizeOpen sleeve configuration allows the product to be applied after the pipeline has been welded and cleaned.Specification( mm) :                                                 Pipeline size: from Ø 108 to Ø 1554 (4''---60'')Sleeves width: 100mm, 150mm,200mm, 300mm,450mm,500mm,600mm,650mmSleeves Thickness: 1.8mm, 2.0mm, 2.2mm,2.5mm,2.8mmClosure patch: 100mm, 150mm,200mm (4'', 6'', 8'')Model:  HSS 3600/505/ Ø 1066.8     HSS--Heat shrinkable wraparound sleeves     3600------Roll length(mm)     505----- -Roll Width (as supplied)     Ø 1066.8----Joint or pipeline DiameterTechnical Data:  Sleeve Operating CharacteristicsTest Method Test ResultResultPipeline Operating Temp.  Up to 60°C  Minimum Installation Temp.  75°C  Mainline Coating Compatibility  PE,PP, FBE,HPPC Adhesive Properties Softening PointASTM E28 95°CpassLap Shear @ 23°CASTM D1002 400N/cm2passBacking Properties Tensile StrengthASTM D638 2600PSIpassElongationASTM D638 500%passHardnessASTM D2240 50 Shore DpassVolume ResistivityASTM D257 1x1016 ohm-cmpassTape Properties Tape Thickness  2.5mmpassBacking thickness  1.5mmpassAdhesive thickness  1mmpassPeel Strength @ 23°CDIN EN12068 70N/cmpassImpact ResistanceDIN EN12068 >15JpassIndentation ResistanceDIN EN12068 >1mm@60CpassCathodic Disbondment @ 23ºC, 28 days with epoxyDIN EN12068 12 mm radpass/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
