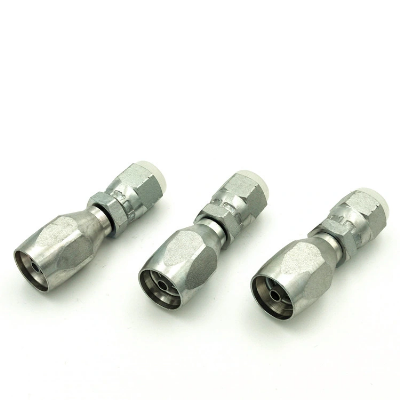

Threaded Ferrule Fitting Carbon Steel Reusable Hose Fitting

threaded ferrule fitting carbon steel reusable hose fitting1. Raw Material: Carbon Steel & Stainless Steel available 2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow 3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours ) 4. Packing: Products are protected with the plastic caps and then packed in carbon box. 5. OEM Service: Available. Customer only need to provide the product drawing or samples. 6. Sample. Please contact our sales person for the free sample.   Instructions:Clamp a reusable hose fitting socket into the jaws of a bench vice. Insert one end of a hydraulic hose into the fitting secured in the vice. Turn the hose counterclockwise to thread it into the socket. Continue turning until the hose bottoms out in the fitting. Lubricate the mandrel assemble of the reusable hydraulic fitting with clean hydraulic fluid. Slide the mandrel in and out of the socket and into the end of the hydraulic hose to lubricate the inside of the connection. Push the mandrel into the socket until the threads of the assembly meet the front edge of the socket. Turn the nipple nut clockwise to thread the mandrel into the socket with an adjustable wrench. Stop turning the nut when there is a 1/32 to 1/16 inch gap between the front edge of the mandrel assembly and the front face of the socket. Hold the front nipple nut steady with an adjustable wrench. Turn the rear mandrel nut counterclockwise with a second adjustable wrench to complete the assembly. Parameters:Part No.Thread EDashDimensionACS1S226718-04-047/16"×2004229141726718-05-051/2" ×200525.49.5141726718-06-069/16"×180624.510.5171926718-08-083/4"×160831.511222426718-10-107/8"×14103413272726718-12-121.1/16"×12123715323226718-16-161.5/16"×121633.516384126718-20-20W1.5/8"×122041.517415026718-24-24W1.7/8"×12244320465526718-32-32W2.1/2"×123245.523.56575Picture of fitting workshop:Picture of different fittings:Supply other type fitting:1. Metric Fitting:   Flat Seal Fitting, Multi-seal fitting, spherical seal fitting, 60° Cone seal fitting, 74° cone seal fitting, 24°cone O-ring L.T. Fitting, 24°cone O-ring H.T. Fitting, JIS 60° Cone Seal Fitting, Standpipe Fitting, Japan Metric Fitting etc; 2. British Pipe Adapter:   JIS BSP 60° Cone seal Adapter, BSPT Adapter, BSP multi-seal adapter, BSP flat Seal Adapter, BSP O-ring Seal Adapter; 3. American Pipe Adaptor:   SAE Code 62 Flange, SAE Code 61 Flange, NPT Adaptor, JIC 74°Cone Seal Adaptor, NPSM 60°Cone Seal Adaptor, ORFS Flat Seal Adaptor, SAE O-ring Seal Adaptor 4. Banjo Adaptor:    Metric Banjo Adaptor, BSP Banjo Adaptor 5. Staple-lok Adaptor 6. Double Ended Adaptor 7. Metric Transition Adaptor 8. British Transition Adaptor 9. American Transition Adaptor 10.Other Adaptor & Fitting Q: Can you produce customized goods ?    A: Yes, the size, diameter and length can be produced as per client's requirements.     Q: Can you print words on products as per client's requirement?   A: Yes, make label according to your exact requirement.       Q: What is your payment terms?   A: T/T, WU or Paypal.    Q: Do you accept OEM?    A: Yes, OEM or ODM are both OK.   Q: Where is your nearest loading port ?    A: Tianjin Xingang, China.    Q: How can you guarantee the quality or any warranty?   A: If any quality problems during use, all the products can be returned or according to consumer's requests.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
