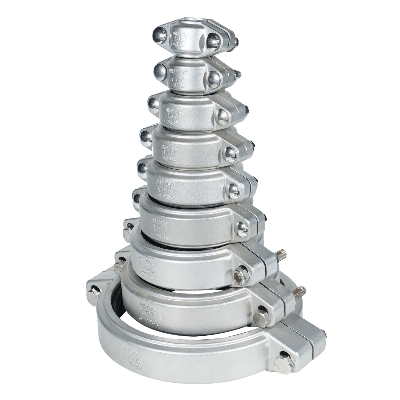

Stainless Steel Flexible Grooved Joint Piping Coupling

  GROOVED FLEXIBLE COUPLINGS PRODUCTS SERISEProduct DescriptionSTAINLESS STEEL GROOVED FLEXIBLE COUPLINGS SPECIFICATION MATERIAL SPECIFICATIONSHousing : Stainless steel 304(CF8) or 316L(CF3M)Rubber Gasket : Standard gasket is EPDM(Ethylene-Propylene-Diene Monomer), the range of working temperature is -50ºC-150ºC,using for cold water,hot water and rare alkaline chemical products.Bolt&Nuts : Stainless steel bolts&nuts according to international standard models of carriage bolts and flange nuts.Nut is SS304 material.According to ASTM A743 standard for housing material--Type 304 to ASTM A743 CF8(304)--Type 316L to ASTM A743 CF3M(316L)SIZE SPECIFICATIONSSize range : 1"to 8"(DN25 to DN200),cutting groove only.Rated working pressure--Low pressure flexible coupling 300psi;--Medium pressure flexible coupling 600psi;--High pressure flexible coupling 1000/1200psi;--Super High pressure flexible coupling 1500psi.  Product Parameters  LOW PRESSURE STAINLESS STEEL FLEXIBLE GROOVED COUPLING(300psi)  Our AdvantagesHousing:Stainless steel is used as raw material with good corrosion resistance. And there is the natures which is high strength, good toughness and good mechanical properties. According to the precision casting process, the precision of the clamping size is guaranteed.The material has tensile strength which is not less than 600 MPA and the extension is not less than 15%. withstands high pressure and high impact of pipeline by several disadvantage factors.Gasket :The gasket seal with special C-shaped design, that is perfect matching with pipeline dimension in order to achieve working pressure.The gasket is tightener while further pressed in order to achieve sealing efficiency.when the Meanwhile, the imported raw material will also be guaranteed the mechanical properties.Scope of applicationCompany ProfileTianjin Morui Environment&Technology Co., Ltd. (refer to Tianjin MR), is professional company which is committed to become processing manufacturer of pipeline system solutions. Located in the Tianjin High-tech Zone as headquarter. There are several branches in Shandong, Shanxi and Shanxi provinces.We are not only processing manufacturer, but also it has the own sales and service network. We are able to grasp accurately the clients' "pain points" that the clients faced. And provide the proper solutions immediately. Because we have the excellent team who are focusing on follow-up service.The Tianjin MR company's products have been widely used in the field of MF, UF and RO system, sewage water system, water supply and drainage, high-pressure desalination system, such as garbage infiltration liquid, electronic, chemical industry, air-conditioning and so on. Our products are compliance with international first-class standard(GB, ASTM, DIN and JIS). Meanwhile providing the professional before-sale and after-sale service to our clients.Quality Control Certifications /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
