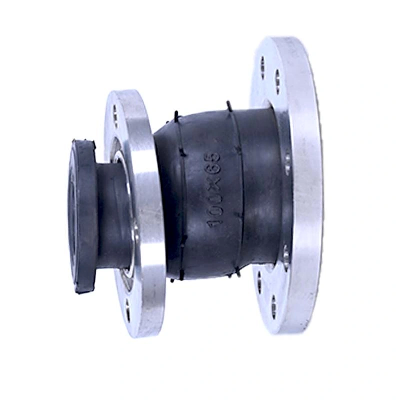

Eccentric Reducer Rubber Joint Double Flange Carbon Steel

Product Description          eccentric reducing rubber joint as the name of the idea is that the center of the rubber joint and both sides of the diameter are different, eccentric reducing rubber joint is mainly to solve the problem of different heart, different diameter metal pipe connection, With high pressure resistance, good elasticity, large displacement, balance pipeline deviation, absorption of vibration, reduce noise effect, easy installation and other characteristics, widely used in water supply and drainage, fire fighting, papermaking, pharmaceutical, petrochemical industry, ships, water pumps and other pipeline systems.          It can solve the problem of different pipe diameters when connecting metal pipes. At the same time, it has the effect of shock absorption and noise reduction, which can save pipe installation parts and cost. It consists of inner rubber layer, nylon rope reinforced rubber ball and loose metal flange. With high pressure resistance, good elasticity, large displacement, pipeline deviation balance, vibration absorption, noise reduction effect is good, easy installation and other advantages, can be widely used in water supply and drainage, circulating water, HVAC, fire protection, papermaking, pharmaceutical, petrochemical, Marine, pump, compressor, fan and other pipeline systems. The ordinary type is used for conveying -15ºC~120ºC air, compressed air, water, seawater, oil, acid, alkali and so on. Special type for conveying the above medium or oil, concentrated acid, concentrated alkali, -30ºC~250ºC above solid materials. NumberNameMaterial1Inner and outer layersNR,NBR,EPDM,etc.2FrameNylon and fabric3Pressurized ringsteel wire strand4Flangestainless steel,carbon steel,ductile ironfeature:1, small volume, light weight, good flexibility, easy installation and maintenance.2, the installation time can produce transverse, axial and Angle displacement, without being limited by the pipeline through and flange unparallel.3, the structure of the work can reduce the transmission of noise and vibration absorbing ability.  Product ParametersTechnical Conditions    TypeKXD(DN50-300)KXD(DN350-600)RemarkWorking pressure1.00.6A.Such as medium oil, acid and alkali substancesB.Operating temperature has special requirementsC.You can also send letters to draw customizedD.Order must be statedExplosion pressure
