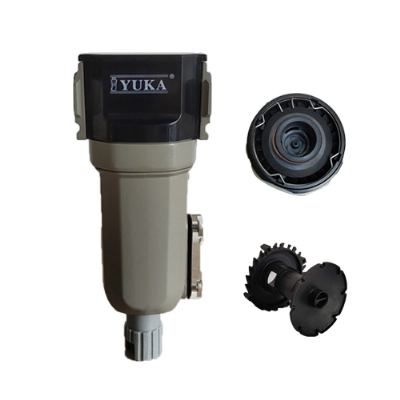

Useful Air Compressor Part Permanent Magnetic Separator

TECHNICAL SPECIFICATION  ModelPipe sizeFlow ratesDimension (mm)L/Sm3/minscfmW(Width)H(Height)ABC(clearance for housing)TWS009RC1/4"15.0 0.9 31.8 8119724.6173.950.5TWS010RC3/8"25.1 1.5 53.0 8119724.6173.950.5TWS011RC1/2"46.8 2.8 98.8 10824930.1220.653.3TWS012RC3/4"66.8 4.0 141.2 10824930.1220.653.3TWS014RC3/4"86.8 5.2 183.6 10828930.1260.653.3TWS016RC1"130.3 7.8 275.3 13333240.729159.6TWS018RC1-1/2"175.4 10.5 370.7 13333240.7359.859.6TWS020RC2"300.0 18.0 636.0 17061752.92662.9759.6Technical requirementsMaximum operating pressure: 10 barg  Maximum operating temperature: 80°C  Minimum operating temperature:1.5°C  PressureBarg1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Psig15 29 44 59 73 87 100 116 131 145 160 174 189 203 219 232 Correction factor0.38 0.53 0.65 0.76 0.85 0.93 1.00 1.07 1.13 1.19 1.23 1.31 1.36 1.41 1.46 1.51 APPLICATIONPROBLEM IN COMPRESSED AIR SYSTEMThere is large amount of water in compressed air system, which will corrode the pipeline, damage the valves parmanently, air cylinders and pneumatic tools and devices; reduce efficiency of the after-cooler/ heat exchanger.PRODUCT FUNCTIONYUKA high efficiency cyclone water separator will remove 99% liquid water in compressed air, can protect the air dryers and filters and improve their problem.• Reduce the corrosion to pipeline and damage to valves, air cylinders, electronic components by water.• Protect air filter from bulk liquid contamination.• Improve air quality.• Protect the pre-filter of refrigerated air dryer and adsorption air dryer.• Remove liquids in all fluids efficiently.• Cut down the operational and maintenance costs.FACTORYCERTIFICATEFAQQ: Are you a trading company or a factory? A: We are a professional manufacturer of compressed air separation, filtration and purification equipment since 1998.Q: Do your company accept ODM & OEM?A: Yes, of course. Full ODM & OEM accepted and we have professional R&D team.Q: What payment methods do you accept?A: T/T.Q: What are your payment terms?A: 30~50% T/T in advance, balance before shipping.Q: How long will you arrange shipping after order confirmed?A: Generally speaking, 10-30 days after receiving your payment. If some small available parts, we can send in 3-5 days. Pls be aware that production leading time is due up to specific items with different quantity.Q: How about your warranty?A: One year warranty provided after you receive our products. Welcome to Hongrijia Depurate Facility Science & Technology Co., Ltd.Know us, Choose us!/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
