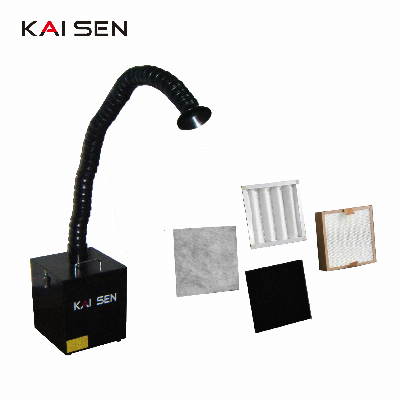

Dust Collector for Laser Welding/Engraving/Marking/ Cutting/Fume Extraction

Working principleCleaning: when dusts accumulate continuously on filter cartridge's layer surface, the pressure difference between it's interior and exterior will increase steadily, when the pressure difference reach pre-set value(1000-1500Pa), the pulse valve will open, dry, oil-free compressed air rush into the reverse blow cleaning system. The system rotate and high pressure air stream jet at the interior of filter cartridge, blow off dusts accumulated on the filter cartridge's layer surface, dusts fall into dust collector under gravity, thus the whole cartridge's layer surface is cleaned.Product introductionIncorporated world leading environmental technology, double working bay double filter cartridge fume purifier is a technically advanced industrial dust & fume purifier, it's developed with full consideration of the forming, characteristics and harm of fume and based on actual conditions of cutting and welding workshop.This purifier can be automatically cleaned and manually cleaned, automatically cleaning is as following:1. When air pressure difference reach 1500Pa between the interior and exterior of the filter cartridge, the system will implement interval rotation pulse blow cleaning.2. When the fan stops working, the system will implement interval rotation pulse blow cleaning for three times.Main feature1. Suction arm can be rotated 360° horizontally, according to actual working condition, suction volume can be adjusted by adjusting volume valve in suction hood.2. PTFE coating(highly effective glass fiber)micro particle filtration, filtration efficiency reaches 99.99%, meanwhile maintain a high air flow3. purifying dry, oil-free, non-corrosive fume mixture generated in cutting and welding, collecting rare metals and valuable materialsTechnical parametersNoitemparameter1fan typeKSXH-20B2treatment of air flow260m3/h3motor power200w4power supply220V/60Hz5filtration area3m²6number of filter cartridges3pieces7filter mediumPTFE coating filter material/(highly effective glass fiber)8filtration efficiency>99.9%10compressed air0.5~0.6 MPa11maximum pressue470Pa12noise65±5dB(A)13weight15±2KGS14dimensions(excluding suction arm)308×308×420mm     Company profile    ExhibitionPackage & ShippingPackage: Package Used Wooden Box without FumigationThe package would include spare parts box and machine installation tools.Transportation By Sea or By Air are both Acceptable. For more information, please contact:Eric Lau        Add: Block 1, No. 98, Shiyuan Rd., Songjiang Dist., Shanghai, China 201600 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
