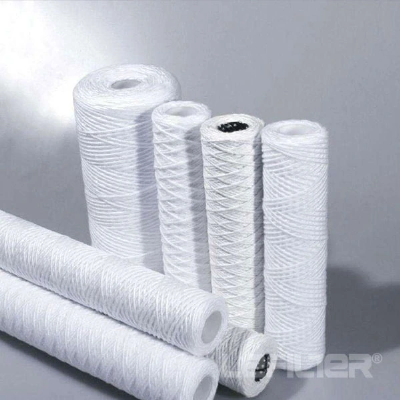

Parker String Wound Filter Cartridge T23r40az

Parker String Wound Filter Cartridge T23R40AZ   CARTRIDGE RATING: 5 MICRON (NOMINAL) INTERNAL DIAMETER: 28 MM EXTERNAL DIAMETER: 63.5 MM LENGTH: 1016 MM DESIGN FLOW: 20 LPM Filter,Cartridge,5 Micron,Wound TypeOutside Diameter-63.5 MM;Height-1016 MM;Filter Material-PP ;Design Pressure-7 KG/CM2;Design Temperature-65 DEG.C;Micron-5 MICRON;Flow Rate-3.79 M3/HR;Type-Wound ;Make-Parker or Equivalent ;Model-T23R40AZ;Each filter should have 142 candles.3.Filter performance of wire-wound filter:Filtering accuracy: 0.5μm, 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm,100μm Polypropylene wire-wound filter element can be used in chemical solvents such as acid and alkali, organic solution, and the suggested highest operating temperature is 60 ºC or less. The center rod of absorbent cotton fiber filter is made of stainless steel, and it can be used in organic solution, water, oil, alkaline solution, beverage, and medicine etc. 4.Product features of wire-wound filter:Wire-wound filter element is made of textile fiber yarn, which is tightly wrapped on porous skeleton, and its different filtering precision is controlled by the winding density of filtering layer and shapes of filter hole It can withstand high filtration pressure It has a wide range of chemical compatibility A variety of materials can be used to make this filter element in order to adapt to the demand of different liquid filtration The structure of filter aperture with deep filtering effect is loose outside and tight inside With the small pressure drop and large pollutant-carrying capacity this filter element can effectively remove suspended matters and particles in liquid. 5.Application field of wire-wound filter:Pre filtering treatment of drinking water Filtration of acid and lye liquid in chemical process Filtration of industrial chemicals and organic solvent Pre filtering of reverse osmosis in RO Filtration of serous fluid such as syrup, chocolate Filtration of developing liquid, ink Pre filtration of sterile water and ultrapure water Treatment of industrial water and plating solution     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
