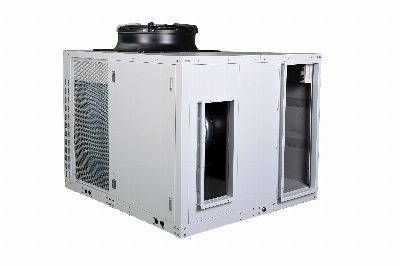

Customized Rooftop Package Unit Air Conditioning Unit HVAC System Chiller

Product DescriptionQuick DetailsPlace of Origin: Ningbo, China (Mainland)           Type: Rooftop unit Refrigerant: R410A                                               Operating Voltage: 380/400 VACCooling capacity: 25kw~ 400kw                            Application: Building                    Size: Customized Size                                          Model Number: CustomizedIntroduction Rooftop packaged systems are unobtrusive, quiet and designed to provide year round comfort for warming in winter and cooling in summer. Green's wide product range offers a unit to suit small to large packaged air conditioner applications, e.g. offices, shops, hotels, fast food outlets, restaurants, petrol stations, open plan office and work spaces, supermarkets, shopping malls and auditoriums. Units are suited to high static pressure applications where large volume spaces are to be air conditioned. Long duct runs are possible enabling greater installation flexibility. This range of units has been developed to meet the needs of typical applications.Main Feature1. Various products and wide applicationThis unit has option of cooling only and heat pump, refrigerant: R410A, cooling capacity is from 25kw to 400kw in standard series. Other cooling capacity can be customized2. The refrigeration system is efficiency and reliability, can meet all types of air conditioning requirementsAdopt international famous brand of components and parts, suitable to be mounted on rooftops, plant rooms or ground level3. Low noise, high static pressure, compact structureIt is high efficiency and low noise centrifugal fan applied for quiet operation, EC plug fan is for option.4. Weather proof, polyester epoxy power electrostatic paint casingGalvanized steel and Zinc galvanized steel are for standard type. Stainless steel is for optionProduct ParametersModel No.GRTH 15-25_25BSRGRTH 20-35_25BSRGRTH 25-45_25BSRGRTH 30-55_25BSRGRTH 37-70_25BSRGRTH 45-80_25BSRGRTH 45-90_25BSRGRTH54-110_25BSRGRTH 67-115_25BSRGRTH 67-145_BSRGRTH80-150BSRGRTH100-210_25BSRGRTH100-235_BSRPower supply380-400V / 3Ph / 50HzCapacityCoolingW27400349004480058600689007887089000108000113000145000152000211000236000HeatingW28800365004920062600724008228098200115300116000156000165200227400256000Input powerCoolingW8694116221492820207229672629030690372413766748333524146790074870HeatingW9151122341571421270241752742632305392013964950877551727147478811COP3.2332.932.92.92.9332.93.13.2Air Flow m³/s1.522.53.23.84.54.55.46.86.881010EvaporatorExt. Static PressurePa150150150150150200200200250250250250250Drain Pipe Sizemm3/4"3/4"3/4"Condenser AirFlowCoolingm³/s3.414.274.278.279.729.7210.811.911.915.915.919.620Outdoor OperatingCooling - min - max°CDB15 - 4215 - 4215 - 42RangeHeating - min - max°CWB-23-23-23RefrigerantType / GWP R410A / 2088R410A / 2088R410A / 2088Chargekg1 x 8.21 x 10.41 x 13.31 x 8.3 / 1 x 9.32 x 11.02 x 11.02 x 13.21x10.0/1x22.21 x 10.4 / 1 x 23.32 x 22.02 x 22.01 x 27.9 / 1 x 35.22 x 35.2     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
