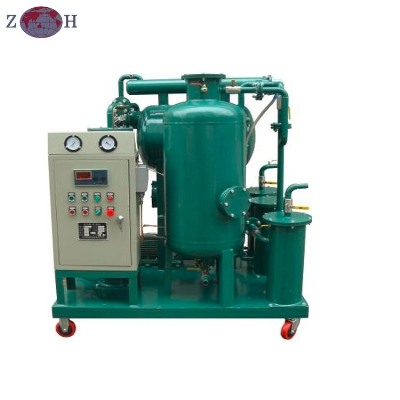

Movable Vacuum Transformer Oil Purifier

Description of transformer oil purifierVacuum oil filtrating plant is a typical double-stage vacuum oil treating device, special for recycling, dehydrating, degassing and purifying different kind of insulation oils used in high voltage transformers and circuit breakers, etc.Vacuum oil filtrating plant is suitable for installation site and overhauling site working because of combining vacuum degassing and vacuum filling functions together.Main features of transformer oil purifier1) Double-stage, high vacuum pressure and high flow rate2) Adopts Japanese 3D flash distillation technique, better degassing & dehydrating efficiency.3) Precise fine multi-stage filtration4) Automatic pressure protection, automatic constant temperature control, automatic oil level control 5) Low noise level, simple operation and maintenance  Technical data of transformer oil purifierItemUnitZYD-30ZYD-50ZYD-100ZYD-150ZYD-200ZYD-300ZYD-500Rated flowL/H1800300060009000120001800030000Working vacuityMPa-0.08 - -0.099Working pressureMPa≤0.5Constant temperature range°C20 - 80Filtration finenessμm1~5Noise leveldB(A)≤78Heating powerkW30456090135180216Total powerkW35506696142191230I/O pipe gaugemm25324050506580Machine weightKg60080010001300180021002400DimensionLmm1200125014501600160018001900Wmm1200125014001600160017001900Hmm1700175018002100215022502300We Nantong Zhenhuan Trade Co., Ltd. is certified by TUV, BV, SGS, good reputation and credit. We can provide you not only good quality transformer oil purifier, but also good after-sale service.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
