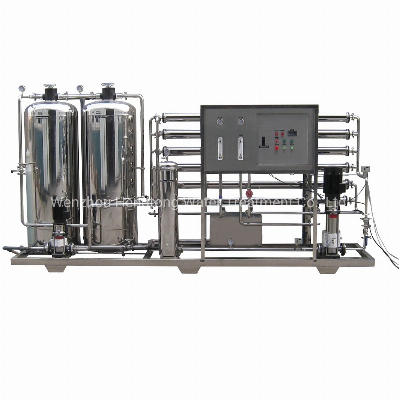

Water Treatment Plants Reverse Osmosis with Membranes Purify Systems

Water Treatment Plants Reverse Osmosis with Membranes Purify SystemsComponentsRaw Water PumpMultiple Media FilterFilter MediaActivated Carbon Filter Filter MediaDosing Device Dosing Pump Dosing tankCartridge Filter Filter elementRO UnitHigh Pressure Pump RO Membrane Membrane Housing Pressure Gauge Flow Meter Assembly ValveFrameWashing System Washing Pump Washing Tank Pipes & FittingElectric Control SystemControl PanelPLC Programmable High&Low Pressure Switch  Conductivity Meter Electrical instrument Wire & cable   Optional itemsRaw Water TankPure Water PumpOzone GeneratorOxygen generator,Ozone Generator and Air compressor All-In-OneOzone Mixer TowerPurified Water TankUV SterilizerTechnological ProcessRaw water(inlet water) → raw water tank → feed pump → sand filter → activated carbon filter → cartridge filter,precision filter → high pressure pump →RO unit → pure water tank → (UV light sterilizer or ozone sterilizer) useTechnical parametersModelFlow rate (L/h)Power(KW)Water use efficiencyRO membraneDimension L X W X H(mm)RO-500L5001.5≥ 50%40401650X630X1800RO-750L7502.5≥ 50%40401870X630X1850RO-1000L10002.5≥ 50%40401870X650X1850RO-2000L20003.5≥ 50%40402440X650X1750RO-3000L30004≥ 50%40402440X620X1850RO-5000L50007.5≥ 50%80402000X900X1800RO-6000L60009.5≥ 60%80403000X900X1800RO-8000L800013.5≥ 60%80403000×900×1800RO-9000L900014≥ 60%80404000X900X1800RO-10T10T/H19≥ 60%80403000X900X1800RO-12T12T/H19.5≥ 60%80404000X900X1800RO-15T15T/H23≥ 60%80404000X900X1950RO-20T20T/H28≥ 60%80405000X900X1950RO-30T30T/H55≥ 60%80407000X900X1950Flow diagramRaw water → pretreatment → (UF system) RO system → permeated water reuse and concentrate drainSingle stage RO system    Two-stage RO system  Water treatment equipment show  FAQ1. Q: What products you provide? A: We are specialized in RO system, EDI system, UF system, Sewage water treatment equipment, etc.2. Q: What's the information you need before order? A1: what's your raw water ? B1: what's the capacity per hour of the equipment ? C1: What's the application of purifier water ?3. Q: How long is your delivery time?A: Generally it is 30 days, Depends on your project.For more information,please send inquiry./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
