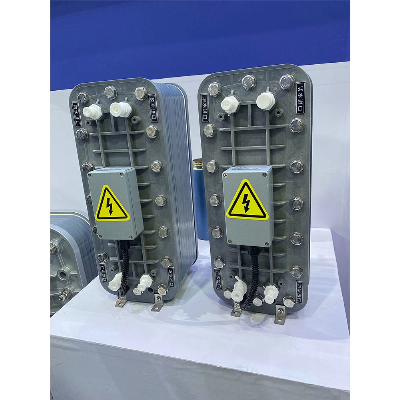

Ultrapure Water 50-500L/H Water Systems Electrodeionization EDI Module

Water Treatment Plant Filter China Electrodeionization EDI SystemProduct Introduction  1.Brief IntroductionEDI is a kind of pure water manufacturing apparatus that applies to ion exchange/ ion exchange membrane technology and ion electric migration technology. It is wisely combined electro dialysis with ion exchange technology, by using of high-voltage electrodes at both ends to drive charged ion in the water to move, and with the ion exchange resin and selective resin membrane to accelerate ions moving, so as to achieve the purpose of water purification. EDI has the features of easy operation and excellent environmental protection. It is a green revolution in high pure water producing.2. Technology Specification Mini-type EDI ItemEDI-P-50LEDI-P-100LEDI-P-200LProduct Flow (L/H)50100200Recovery (%)70-8070-8070-80Resistivity (MΩ.cm)≥15≥15≥15Voltage (DCV)24-3032-4040-50Current (DCA)0.5-10.5-10.5-1Max. Pressure (Mpa)0.40.40.4Size of Fresh/Produced PipeDN6DN6DN8Size of Concentrate Inlet/Outlet PipeDN6DN6DN8HP Series EDIItemEDI-P&F-0.5-HPEDI-P&F-1.0-HPEDI-P&F-2.0-HPEDI-P&F-3.0-HPEDI-P&F-4.0-HPProduct Flow (L/H)0.51234Min. Product Flow  (L/H)0.30.71.42.43.2Max.Product Flow  (L/H)0.71.52.53.84.8Recovery (%)85-9590-9590-9590-9590-95Voltage (DCV)9-1815-3030-6045-9060-120Current (DCA)2-52-52-52-52-5Inlet Pressure (Mpa)0.1-0.30.1-0.30.15-0.40.15-0.40.15-0.4Max. Pressure (Mpa)0.70.70.70.70.7Size of Fresh/Produced PipeDN25DN25DN25DN25DN25Size of Concentrate Inlet/Outlet PipeDN15DN15DN15DN15DN15LX  Series EDIParameterLX-04ZLX-10ZLX-18ZLX-24ZLX-30ZLX-45ZUnitDesigned Flow0.44-0.67 (rate: 0.5)1.0-1.652.0-3.12.8-4.23.4-5.15.1-7.7M3/h(rate: 1.0)(rate: 2.0)(rate:3.0)(rate: 4.0)(rate: 5.0)Max Flow0.671.653.14.25.17.7M3/hMin Flow0.220.551.11.41.72.55M3/hVoltage DC0-550-1350-2400-3200-4000-600VElectricity DC0-60-60-60-60-60-6ARated Current DC2.0-3.02.0-3.02.0-3.02.0-3.02.0-3.02.0-3.0ARecovery Rate80-90%80-90%80-90%80-90%80-90%80-90%   3.Application3.Application cases3.1    600T/H (3*200T/H) EDI system of an iron and steel group company                                     Work technology: Pre-treatment+Double stage reverse osmosis+EDI3.2   400T/H (4*100T/H) EDI system of a thermoelectric company                                  Work technology: Pre-treatment+Double stage reverse osmosis+EDI3.3 Export to Iran 50T/H EDI system3.4    30 T/H EDI system of a waste incineration power generation company /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
