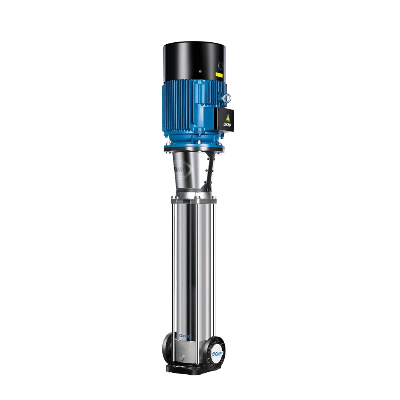

RO Reverse Osmosis High Pressure Pump Vertical Pressure Pump

Summary    Applications     CDM/CDMF pumps are new generationhigh    CDM/CDMF pumps are designed for a variety of     efficiency,non-self-priming verticalmultistage    applications from the pumping of potable water to the     centrifugal pumps(Abbr. as pumps).It referred to    pumping of industrial liquids. Applied for liquids of     different temperaturedifferent rated flowdifferent European standard, adopted entirely newindustrial pressure range. CDM is suitable for non-corrosive design, efficiency achieved MEl≥0.7.It is energy saving    liguid. CDMF is suitable for liaht corrosive liguid     low noise, environment friendlycompact design    Boosting: Filtering and transferring water in water     beautiful shape, light weight, easy for servicehigh    factories,delivering water in different zone     reliability.    pressurizing for major pipelinesboosting forhigh     buildings. Industrial boosting: process water system cleaning system,high pressure washing system,fire fighting system. Motor    Industrial liguid conveving: cooling and ain     conditioning systems, boiler feed andcondensate Totally enclosed,fan cooled2 pole standard motor    systems, machine matchingacid and alkali     Protection Class:IP55    HVAC: Air conditioning system     Water treatment:Ultrafiltrationsystem,R/O Insulation class:F system,distillation systemseparatorswimming pool Voltage:50Hz:1*220-230/240V 3x200-220/346-380V3x220-240/380-415V Performance cure Following conditions are suitable for the Working conditions performance curves shown bellow 1.All curves are based on the measured values of Thin.clean.non-flammable.non-explosive solid free    50Hz:constant motor speed 2900rpm.     2. Curve tolerance in conformitytoS9906:2012 fiber free, physically and chemically water-like liquid    Grade 3B.     Liquid temperature:    3. Measurement is done with 20ºC air-free water.     Normal temperature type:-15Cto70°ºC    kinematic viscosity of 1 mm/sec.     Hot water type:-15C to120°ºC    4.The operation of pump shall refer to the     performance region indicated by the thickened curve Ambient temperature: up to+40ºC    to prevent overheating due to too small flow rate or     Altitude: up to1000m    overload of motor due to too large flow rate. Description CDM/CDMFDescription(m³/h) 135101520Rated flow(l/s)0.280.831.392.784.175.56Flow range (m³/h)0.5-2.41.2-4.42.5-8.55-148-2410-29Flow range(l/s)0.14-0.670.33-1.220.69-2.361.39-3.892.22-6.672.78-8.06Max. pressure[bar]242324242423Motor power(kW)0.37-2.20.37-30.37-5.50.75-111.1-151.1-18.5Temp(ºC)-15~+120/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
