EPDM Diffused Aeration for Domestic Wastewater Treatment

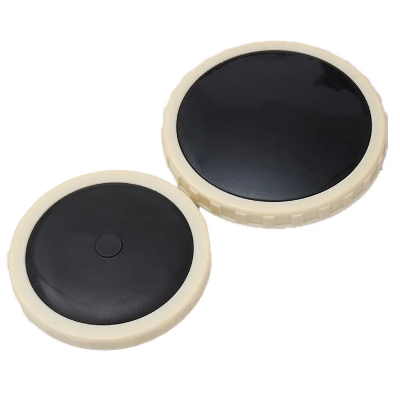

Wastewater treatment EPDM membrane fine bubble diffuserProduct Description Basic Info-------------------------------------------------------------------------- EPDM Membrane disc fine bubble air diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications. Disc diffuser adopts energy saving design, low installation cost, high reliability and excellent performance in intermittent and continuous aeration process. Dense drilling is conducive to efficient oxygen transfer and utilization, in order to apply the aeration system specifications, can use different drilling mode to adjust the working pressure, such as different slot length, distance, the density of drilling. Features:1.Structure for preventing re-flux: When air closed,the center of membrane falls on the orifice of membrane tray,and the non-perforated area can cover the air release orifice, similar to a check valve, to prevent liquid from flowing back into the aeration system. In addition, according to the characteristics of sewage treatment process, an independent check valve has been developed, which can be used in combination with diaphragm check2.Special punching technology: Over5,500 perforations in Dn200,over 6,300 perforations in Dn215,over 9,000 perforations in Dn260,over 10,000 perforations in Dn330. Air deflector diameter is 0.5cm, the contact space with membrane is 0.15cm, which make the opening rate of membrane can reach 99.9%.Also improve oxygenation capacity, oxygen utilzation rate and reduce ventilation resistance.3.High pressure injection molding: The professional machine is shaped by many processes, refined and cast, controlling every process and creating the perfect product.4.Compact structure uniform gas distribution: A folded-concave structure is better in sealing performance, which solves the disadvantage of easy tofalloff when the air flow is too large. Meanwhile,the chassis support add a guide ring and six air guide grooves. Compared with other existing aeration devices, under the same operating load, ours require aeration volume is greatly reduced,and the aeration is evenly distributed throughout the tank.Disk specificationφ215mmφ260mmφ300mmSize8 inch9 inch12 inchBubble size1-2 mm1-2 mm1-2 mmWorking air flow1.5-3 m³/h2-5 m³/h2.5-6.5 m³/hService area0.3-0.65 m²/piece0.4-0.8 m²/piece0.5-0.9 m²/pieceOxygen utilization ratio>30%>30%>30%Service Life>5 years>5 years>5 yearsOxygenate capability0.13-0.4 kg O²/h0.21-0.4 kg O²/h0.21-0.53 kg O²/hMaterialEPDM/Silicon membrane ABS/PVC/PP carrier plateEPDM/Silicon membrane ABS/PVC/PP carrier plateEPDM/Silicon membrane ABS/PVC/PP carrier plateMembrane thickness1.6-1.75mm1.6-1.75mm1.6-1.75mmConnector3/4 NPT3/4 NPT3/4 NPTDiving water depth4-8 m4-8 m4-8 mProducts picture--------------------------------------------------------------------------ABOUT US--------------------------------------------------------------------------ARISONS is a professional Rubber&Construction manufacturer in China. The factory is located in Jiangsu, closed to Shanghai. After 15 years of development, it has a mature production system, a professional engineering team, a quality inspection department and a strong production line, providing a one-stop design scheme and product design for customers in many countries. Our main products are rubber series products, bubble diffuser, water treatment equipment, aeration pipe, aeration disk, large pipe machine, driving, etc., we pay attention to quality, and will make different solutions according to different customers, provide the cheapest price, achieve the most perfect effect, has reached more partners for customers, look forward to cooperation with you! Q1. What is your terms of packing?A: Generally, we pack our goods in Blank Cartons. We privode carton LOGO print service after getting your authorization letters.Q2. What is your terms of payment?A: T/T 30% as deposit, and 70% before after receive the copy of B/L. We'll show you the photos of the products and packages before you pay the balance.Q3. What is your terms of delivery?A: We accept FOB,CIF,CNF,DDP,DDU,LC.etcQ4. How about your delivery time?A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q5. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings.Q6. What is your sample policy?A: We can supply the sample for free, client only need to pay the delivery cost.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
