High Temperature Environmental Protection Incinerator for Pig Body

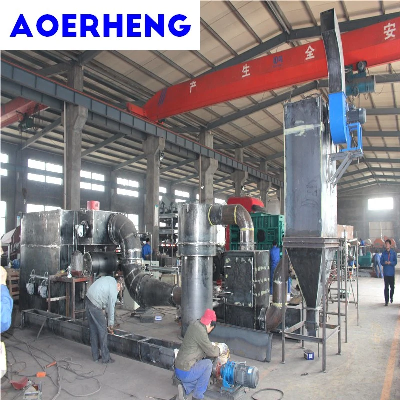

High temperature environmental protection incinerator for pig body1. primary introduce :1Screw sealed feed, no clearance of feed, no flue gas leakage (patent protection).2The whole product is composed of six modules. The equipment can be used only after receiving water.electricity and air pipe when it arrives at the scene.3Thickening furnace body has explosion-proof function 4Smoke exhaust pipe can withstand transient high temperature5Air volume automatic frequency conversion control, so that the furnace to maintain constant negative pressure.6No black smoke technology, no black smoke discharge, dioxin emissions by the Chinese Academy of Sciences detection is far less than 0.1mg national standard.7Automatic control box with access control identification system, who opened the equipment when clear.8Automatic collection of furnace temperature, air volume, operating status, failure alarm and other data and upload to the local environmental supervision platform.2.Forizontal incinerator pictures:3.Working process:         Solid hydraulic feed → primary combustion chamber → secondary high temperature combustion chamber → cyclone dust collector → water-cooled heat exchanger → dry absorption device (activated carbon, lime) → high temperature resistant ceramic dust collector → spray washing tower → induced draft fan → chimney discharge 4.Basic parameter :ModelAEH-05AEH-1AEH-2AEH-5AEH-10AEH-20AEH-50AEH-100Capacity /day0.5 Ton1 Ton2 Ton5 Ton10 Ton20 Ton50 Ton100 Tonpower4.5KW5.5KW6KW7KW8KW10KW15KW20KWFlue gas residence time>2 secondfuelDiesel oilElectric supply220V/50HzControl way 7 Inch touch screen automatic controlSafe configurationHigh temperature resistant smoke pipe,Automatic feeding port to prevent personal injurycNegative pressure in the furnaceAutomatic frequency conversion control range:20~50PaChamber temperature≥850ºCSecondary chamber temperature≥1200ºCFuel consumption /day2L2L3L3L5L5L8L12LElectrical power consumption /h4 degree/h4degree/h 4degree/h 6 degree/h8degree/h 10degree/h 12degree/h 15degree/h Heat reduction rate of slag≤5%Odor and volatilityRemoval rate of organic matter≥99%Removal rate of organic matter≤50ºC Pipe diameter250mm250mm250mm300mm400mm500mm500mm650mmwDimension /cm720*350850*350900*3509500*3501000*4501100*4501500*5002000*600Incinerator wall thickness15mmWeight3.5 ton 4 ton 5 ton 7 ton 9 ton 12 ton 20 ton 35 ton 5.Sucessful case:     1. Incinerator for India                          2.Incinerator for Pakistan                    3.Incinerator for Cameroon                  6. Our service :           For most of the machines, the quality is guaranteed for one year since the date of shipment except wearing parts. we supply the on-line service for all the machines. and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too. 7. Customers visit our factory:8.Factory certification :  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
