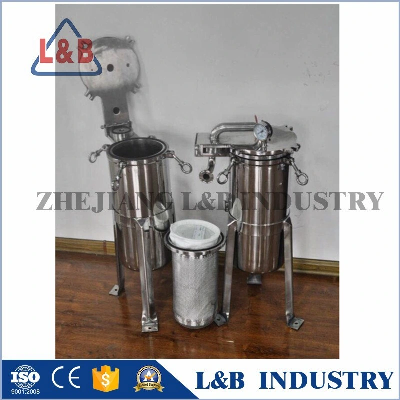

Product DescriptionStainless steel single bag filter housing effectively removes dirt, pipe scale, and other contaminants from process liquids such as water, beverage, chemical and petroleum products. Bag filter can be used with the standard #1, #2, size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big, achieving more efficient filtering result. Eye Bolt Closure System. The user friendly, cost effective bag filter housing for high volume, multiple applications and processes. The Max. Flow of single unit are from 18 Cubic m/h to 35 cubic m/h. Bag filter housing 1) O-ring sealing design,better effect 2)Ring bolts for quick open,convenient,fast. 3)Entire superstucture of steel refining,rugged, high pressure capability 4)Adjustable tripod activities can be adjusted freely according to a fixed line height of the body needs. Main Appilications: 1. Pre-treatment for various kind of water 2. used in RO system ,EDI system and UF system,etc. 3. used for paint, beer, vegetable oil, pharmaceuticals, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating liquid, milk, mineral water, thermal solvents, emulsions, industrial water, syrup, resin, printing ink, industrial waste water, fruit juice, edible oil, wax, etc. Performance characteristics(1) Big flow(2) Long service life(3) Ffiltering effect is obvious(4) High mechanical strength(5) Simple operation(6) Cost savingsWorking principle:The bag filters is through the filter bag, in the effects of stress, through the filter bag, be prefiltration filter bag interception down pollutants stranded in the filter bag,filter bag phosphate-contained residue stay inside, and filtrate along metal bearing a basket with netting on top wall outflow, achieve the purpose of filter.Stainless steel bag filter housing Operation ParametersMaximum Operation Pressure: ...150 PSI( 10 Bar)Maximum Operation Temperature: ...230ºF (110 ºC)Pressure Tolerance on Weld: ...0.85 Material:High Quality Stainless Steel 304 or 316LDesign Pressure:150 PSI (10 Bar)Work Temperature:130 DegreeFiltering accuracy0.5-1000um Filter Bag type 1#Bag, 2#BagFlow TypeSide Entry, Top Entry, S-Multi, B-Multi Bag Filter Inlet/Outlet:Tri-Clamp,Flange,ThreadedGasket MaterialSILICONE, EPDM, PTFE, VITON EtcSurface Finish:Mirror Polish, Electrical Polish, Acid Washing, Sand Blast EtcApplications:Food & Beverage, Wine Industry, Pharmaceutic, Chemical Industry etcApplication• Water treatment: NF, UF, RO and ion exchange resin, etc.• Food and beverage industry: filtration of juice, tea drinks, beer, liquor, wine, rice wine, healthy drinks and bottled purified water, etc.• The electronic industry: electronic and microelectronics, semiconductor industry water filtration.• Fine chemicals industry: bio-engineering, oil refined, cleaning mixture, scientific experiments, etc.Characteristics1. High filtration accuracy, for any fine particles or suspended matter, range from 0.5 to 1000 microns.2. Unit filter area is large, a smaller filtration resistance, high filtration efficiency.3. Unique design to prevent the bag sunk into basket under pressure,it ensure 100% no spills.4. The filter has the advantages of high efficiency, small amount of maintenances, long service life, elegant appearance, and etc.Surface FinishFinish TypeMechanical polishing, ElectrolyticPolishing, Sand blasting, pickingPolishingpressureMirror Polish Ra≤0.4μm Operating ConditionsMax Operatingpressure.1.0MPaMax OperatingTemp.150ºC MaterialShell304, 316LO-ringEPDM, PTFE, Viton, Silicone ConnectionShell ConnectionFlangeIn-outletFlange,Tri-clamp, Screw threadPressure Gauge(optional)M14×1.5 Female Screw thread Vent Valve(optional)1/4'' Male Screw threadThe above-mentioned data is the standard, it can customize according to customer's requirements.Technical Parameters/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
