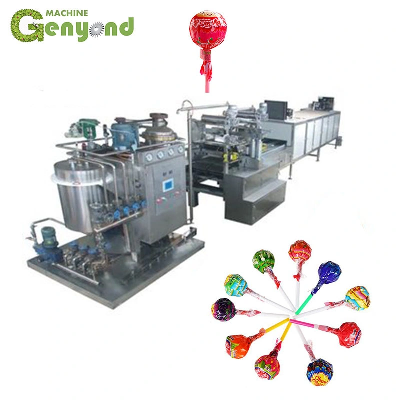

Lollipop Candy Making Plant with Filling

Lollipop production lineIntroductionlollipop depositing line is an advanced equipment to produce lollipop. The operation is controlled by a PLC/program for the vacuum cooking, feeding, and depositing. It can be in-line injection, dosing and pre-mixing for the proportional addition of liquid colors, flavors, and acids. The line is composed of cookers, storage tank, micro-film cooker, depositing, moulds and industrial cooling tunnel. It can produce two color striped, two color layers, one color and central-filled lollipop. The line is a full-automatic plant equipped with an automatic stick insertion system. Moreover, just change the moulds,it is available to produce both hard candy and lollipop on the same depositing line.   Lollipop production line parameter:ModelJY150BJY300BJY450BJY600BCapacity(kg/hr)150 kg/hr300 kg/hr450 kg/hr600 kg/hrMax candy weight28gLollipop DiameterFlat:18-28mm Ball:Max 25mmStick Specification60-100mmDepositing speed25-30n/minSteam requirement250kg/h,0.5-0.8Mpa300kg/h,0.5-0.8Mpa400kg/h,0.5-0.8Mpa500kg/h,0.5-0.8MpaCompressed air requirement0.2m³/min, 0.4-0.6Mpa0.25m³/min,0.4-0.6MpaWorking conditionTemp:20-25°C   Humidity:55%Electric power27kw/380V28kw/380V41kw/380V64kw/380VTotal Length17m17m18m18mTotal Weight3500kg4000kg4500kg5000kgOur companyOur certificationContact/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
