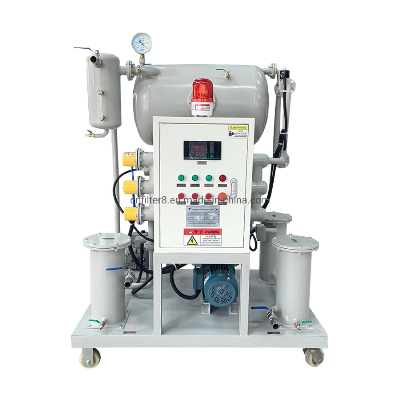

Economical Model Smaller Size Transformer Oil Purifier

  Product DescriptionApplication:ZY portable vacuum oil purifier is applicable for treating transformer oil as well as other electrical insulating liquids such as silicone fluids. The machine can remove the free and soluble water, free and dissolved air and gases, other particulate matters etc and improve the oil dielectric strength. This system is designed for processing oils in workshops, in oil storage tanks or directly in transformers (energized or de-energized transformers). It can used for on-site installation, maintenance and purifying new transformer oil or dirty used oil. Regular maintenance of transformers with our equipment can substantially improve their lifetime and performance to save cost. Features:1.The plant is delivered ready for operation. 2.Degassing, dehydration and filtering for various kind of insulation oils in electrical transformers or circuit breakers through one or several passes. 3.The machine is mobile type with four castor wheels and can move easily indoor.4. Equipped with an automatic anti-foam control system. 5. Equipped with built-in control and safety devices which provides for maximum operating security. 6. Minimised power consumption through optimised degassing (excellent efficiency factor). 7. Standardized filter housing for 1 micron /5 micron, 20 micron and 80 micron filter cartridges. 8. Automatic supervision of the degree of contamination of the fine filter cartridges9. Equipped with sound and visual alarm for low level, high level foam10. The machine adopts the double-infrared liquid automatic controller, pressure automatic-protector which can make sure the machine works online for 150 hours continuously without attendance, reliable and automatical.11. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.12. Functions of online work on-site13. Operation can be operated through automatic P.L.C. (optional)14. Online moisture content measuring device (optional)15. If equipped with our regeneration system with special brand of earth, it can remove color, acidity, sludge, other soluble oil decay products (optional)16. It can be equipped with flow meter, online moisture meter, roadworthy trailer, fully enclosed metal enclosure etc. (optional)  Product ParametersItemUnitZY-6ZY-10ZY-20ZY-30ZY-50ZY-100ZY-150ZY-200ZY-300Flow rateL/min61020305010150200300Vacuum degreeMPa-0.06~-0.095Working pressureMPa≤ 0.4Temperature rangeºC20 ~ 80Normal working hourH≥ 4000Continuous workingH150Power supply 380V/50HZ/3Ph 5 wire(as customer's requirement)Working noisedB(A)606163707075707070Heating powerkW91113153048587085Total powerkW9.712.514.516.533.553657694Oil outlet/inlet  mmφ2025φ25φ25φ32φ42φ50φ50φ60WeightKg1502302502703005007009001100SizeLmm97010501100115012001600160018001900Wmm6307508509009501000110012001200Hmm90013001400145015001800180019001900Index after treatedBreakdown voltagekV≥70Moisture content PPM≤5Gas content%0.1Impurity sizeμm≤1 (customizable)Value β%96Reference Images/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
