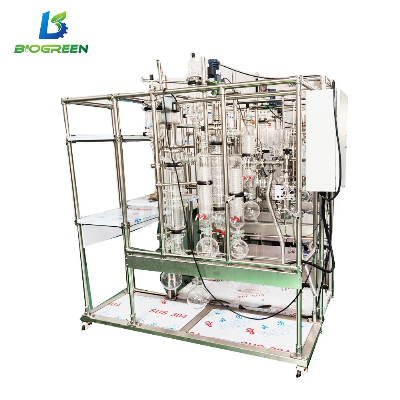

Introduce:Molecular Distillation is a special liquid-liquid separation technology, which is different from traditionaldistillation on the difference boiling point. This is a kind of distillation in high vacuum environment, forthe difference of material molecular movement free path, was carried out in the heat sensitive materialor high boiling point material distillation and purification process. Short Path Distillation is mainly usedin chemical, pharmaceutical, petrochemical, spices, plastics,oil and other fields. ModelBDMD-010BDMD-020BDMD-050BDMD-100BDMD-150BDMD-200BDMD-300BDMD-500Evaporation Area m20.10.20.511.5235Feeding Rate L/h1~155~2510~6050~12060~180100~200100~300200~500Feeding MethodHigh-precision gear pumpReceiving MethodContinuous discharge pumpEquipment Height(mm)21002650310042504500500062007500Maximum Speed (rpm)50~350Operation TemperatureUp to 350 CVacuum Level (mbar)Low to 0.001 mbarFeeding ModeGear pump for automatic and continuous feedingCollection ModeGear pump for automatic and continuous collectionPrinciple:Continuous CBD refinery system short path molecular distillation process descriptionFeed liquid is admitted into still under high vacuum, immediately spread into a very thin film and forcedquickly down the evaporation surface. Heated walls and high vacuum drive the more volatile components(distillate) to the external condenser as the less volatile components (residue) continue down the cylinder.The resulting fractions, thus separated, exit through individual discharge outlets. Depending on application,the desired product is either the distillate or the residue fraction. Small amounts of condensable low MWcompounds collect in cold trap upstream of vacuum system. For high solvent loads, an optional externalcondenser may be installed immediately downstream of the still.Characteristic:1.All glass is made of borosilicate GG172.Use spherical grinding to keep a high vacuum3.All interfaces use a spherical shape to ensure vacuum4.From bio mass to oil or crude to oil we can provide turnkey5.The controller box is imported and easy to operate, Digital display speed and temperature6.The scraper is made of polyphenylene, and the wear resistance is six times that of ordinary PTFE.7.High evaporation efficiency, process time short8.The residence time is short, and the thermal sensitive material is not easy to deteriorate andcarbonize9.The connection port adopts ball milling port design to ensure that molecular distillation isalways in highvacuum10.Glass material,easy to observe process program11.Can reach 0.1Pa with diffusion pump and high efficiency distillation12.The main evaporator adopts jacket design, with high heating efficiency and strong thermalinsulationperformance13.Can continuous feeding and discharging /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
