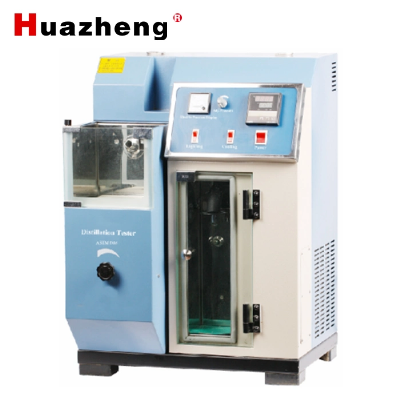

Hz1005b ASTM D86 Distillation Unit for Gasoline, Jet Fuel, Petroleum Solvent

HZ1005B ASTM D86 Distillation Unit For Gasoline, Jet Fuel, Petroleum Solvent I.IntroductionThe instrument is designed and manufactured according to the national standard GB/T6536 and ASTM D86, which is suitable for the distillation and determination of petroleum products such as gasoline, jet fuel, petroleum solvent, kerosene and diesel oil.II.Structural Characteristics1. Distillation device is composed of heating rate control system and heating furnace lifting mechanism. The main components of the heating rate regulating circuit include the solid-state voltage regulator, which is simple to install, convenient to use and reliable in performance. The output voltage is directly displayed by the voltmeter, intuitive and easy to control.2. The heating furnace adopts quartz tube electric furnace, which has the advantages of anti-oil splash, anti-electric shock, anti-oxidation and high thermal efficiency. The observation window of the heating chamber adopts open type, which provides great convenience for flask installation, furnace height adjustment and furnace cooling.3.The receiving system is composed of measuring cylinder, measuring cylinder chamber and lighting, etc. The measuring cylinder chamber is composed of stainless steel and glass door, easy to observe.III.Technical Parameters1. Distillation heating power :0 ~ 1200W continuous adjustable2. Heating furnace lifting can be adjusted :35mm3. Flask support plate diameter: 50mm and 37.5mm4. Condensation bath temperature adjustment range :-5 ~ 80ºC5. Working power supply :AC220V 50Hz6. Distillation range: room temperature-400°C7. Condenser capacity: 8.3L8. Condensation method: compressor refrigerationCompany InformationHuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.Customer VisitExhibitionSimilar Recommendation/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
