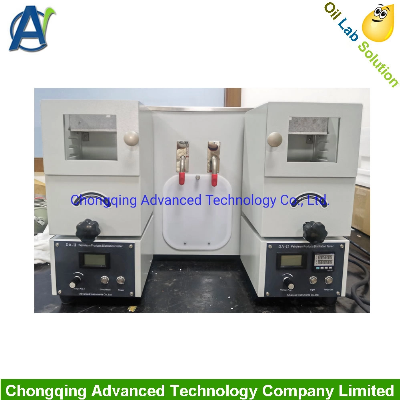

Manual Distillation Characteristics Measuring Equipment Twins Test Unit by ASTM D86

Summary  This Distillation Characteristics Measuring Equipment is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.   This Distillation Characteristics Measuring Equipment is not only suitable to the organizations of high frequency with various of samples but also accelerate the test speed for common users. It is an ideal distillation tester for petroleum products. I. Main technical features1.The Distillation Characteristics Measuring Equipment adopts double units working mode, can do test for one sample as well as two samples which having the same specification or different specifications.It highly improves the work efficiency.2.It adopts two groups of independent digital temperature controller, heater, electric stirrer to constitute two constant temperature baths. Each bath temperature can be adjusted and controlled independently.The temperature in the bath is uniform,can fully meet the requirements of test.3.The Distillation Characteristics Measuring Equipment adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the requirements of test. II. Main technical specifications1. Power supply: AC(220±10%)V, 50Hz2. Total power consumption:≤4000W3. Receiving cylinder: 100ml, division value 1ml.4. Distillation flask: 125ml,meet the requirements of GB/T 6536 and ASTM D865. Thermometer: (-2~300)ºC and (-2~400)ºC, division value 1ºC6. Flask support board: Sic, bore diameter φ32mm, φ38mm, φ50mm.7. Temperature controller:      (1) Range:(Ambient +10)ºC~60ºC     (2) Accuracy: ±0.5ºC     (3) Display: LED8. Ambient temperature: 15ºC~35ºC  Relative humidity: ≤85%9. Dimension:760mm×520mm×500mm10. Net weight:40kg.   Factory overviewCustomer Feedback GermanyUSAPackageFAQ1.What's the delivery time?About 15 days.2.What's your payment terms?30% paid by T/T in advance,70% paid by by T/T before shipping.3.What's your guarantee terms?The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support. 4.Can you supply training?We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
