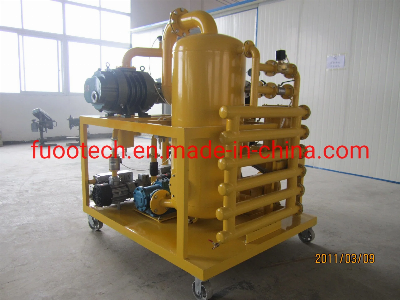

Siemens PLC Controlled Transformer Oil Filtration Machine

Series ZYD-P Fully Automatic Type Double-stage High Vacuum Transformer Oil Filtration Machine with PLC ControllerBrief Introduction:   FUOOTECH Series ZYD-P Fully Automatic Type Double-stage hHigh Vacuum Transformer Oil Filtration Machine, comparing single stage vacuum oil purifier, owns a rotary vane vacuum pump and one more booster roots pump vacuum system which can speed up evacuation much faster and higher. It has been specially designed for on/off site use to completely purify insulating oils in energized or de-energized transformers even when transformer power both below and above 110KV and altitude over 500 meters, as well as purify mutual inductor oil, switch oil and so on.  PLC controller system installed on the ZYD-P oil filtration machine makes the whole operation fully automatically after only click one button to start up, saving labor and time. Operator just standby or sit down to drink coffee and see it periodically. Features:Advanced Duplex 3D stereo-evaporation, efficient oil film sprayer, giving high effective dehydration and degas, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly. Double-stage vacuum system, high vacuum pressure and high flow rate, strong power of vacuum evacuating.Advanced multi-stage precision filtration system, stainless steel materials filtration combined with molecular adsorption technologies Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.Especially applied to vacuum oiling and drying (Hot Oil Circulation / on-site Drying) for power transmission equipments which are over 110KV. Adopt interlocked protection system, which connects oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leakage and electricity leak. Low maintenance cost and time, simple operation and maintenances.Can be made in mobile trailer and fully enclosed type, explosion-proof type, etc… according to actual working condition/requirements.  Technical Specification:ParametersModelUnitZYD-P-30ZYD-P-50ZYD-P-100ZYD-P-150ZYD-P-200ZYD-P-250ZYD-P-300Flow RateL/H1800300060009000120001500018000Working Vacuum DegreeMPa-0.08 ~ -0.099Working Discharge PressureMPa≤ 0.3TemperatureControl RangeºC20 ~ 80Operation TemperatureºC40 ~ 70 (65ºC is best)Power Supply 380V, 50Hz, 3 phases (or as per your requirements)Working hours without TroubleHour4000Continuous Working HoursHour150Ambient Temperature -25 ~ 55ºCWorking NoisedB(A)65 ~ 90Heating Power (adjusted available)KW303648607280120Total PowerKW35.54252.5688293135Inlet/Outletmmφ25φ32φ42φ50φ50φ60φ60WeightKg60070010501150145016001950Dimensionmm1380×1020×17601610×1250×19501750×1350×21501850×1400×22001950×1500×23002050×1600×24002200×1750×2550After FiltrationMoisture (Water Content)   ≤ 5 PPMGas Content  ≤0.01% (Vol)Impurities Degree (Filtration precision)  ≤ 5 micron (no free carbon)Breakdown Voltage (Dielectric Strength)   ≥70 KVFlash Point  ≥145ºCCleanliness  ≤NAS 1638 Grade 6  Note:     1. The dimension and weight will be changed with changing of technical specs.             2. All the specs can be customized according to client's requirements.      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
