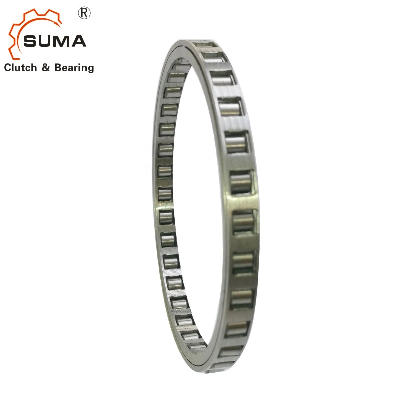

Roller Bearing Cages Rl470 for Industry Machinery

Roller Bearing Cages RL470 for Industry MachineryDescription of Roller Bearing Cages RL470 for Industry MachineryCharacteristicsInstall Width:6mm Operating temperaturemax. 170°C (RL 443 and RL 448 max. 150°C)LubricationOil or grease lubricationDelivered with corrosion protection.InstallationInstallation tolerancesShaft h5; hub H6Inner ring/shaftsteel, HRC 60+4 (HV 700+100); Ehd ≥ 1.3 mm; Rz ≤ 2.5 μmOuter ring/housingsteel, HRC 60+4 (HV 700+100); Ehd ≥ 1.3 mm; Rz ≤ 2.5 μmConstraintsThe roller bearing requires axial constraints on both sides.(collar, snap ring, C-clip, etc.).Parameter of Roller Bearing Cages RL470 for Industry Machineryd = inner diameter D = outer diameter W = width T = torqueDesignationdDWCdyn.Cstat.Oil nmaxGrease nmaxItem no.[mm][mm][mm][N][N][rpm][rpm]RL 412 41263,0401,76055,00045,000303071RL 414 61463,5752,11250,00037,000303131RL 416 81663,8952,34736,00030,000303091RL 418 101865,2123,52030,00024,000303111RL 422 142266,0134,38025,00019,000302652RL 423 152366,0344,44624,00018,000302914RL 425 172567,1575,69921,00017,000302954RL 427 192767,6796,39720,00015,000302672RL428 202867,6796,45319,00015,000302853RL 430 223068,1507,14817,00014,000302974RL432 243268,1047,24116,00013,000302692RL433 253368,1047,28315,00012,000303169RL437 293768,9628,66114,00011,000302712RL 438 303868,9628,69613,00010,000302993RL442 3442610,24710,70812,0009,000302732RL443 3543610,10310,74112,0009,000302873RL448 4048611,64213,44010,0008,000302893RL 453 4553611,41713,5779,0007,000302752RL 455 4755611,41713,6248,8006,900303012RL 458 5058611,92214,9938,5006,500303031RL 459 5159612,69116,3208,0006,400302773RL463 5563613,07017,0637,5006,000302793RL468 6068612,69017,1607,1005,600303151RL470 6270614,12819,8407,0005,300302813RL 473 6573614,12819,8966,5005,100302833RL478 7078613,61419,9786,0005,000303051RL488 8088614,95422,7965,3004,300303183  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
