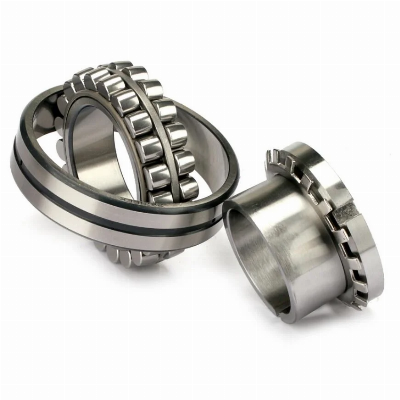

Self-Aligning Ball Bearing Accessory Bearing Adapter Sleeve H Series

https://qdyixinyan.en.made-in-china.com/product/cFRfEOnybeUD/China-He-2328-Adapter-Sleeve-for-Inch-Shafts-He2328-Wheel-Bearing-Auto-Parts-Auto-Bearing-Rolling-Bearings-Motor-Bearing-Rodamientos.htmlSelf-Aligning Ball Bearing Accessory Bearing Adapter Sleeve H Series   Adapter sleeve description1. Adapter sleeves are used for securing tapered bore bearings on to the cylindrical shafts. They facilitate easy mounting and dismounting. They are suitable for both smooth and stepped shafts. The sleeves can easily adapt to the shaft diameter.2. The adapter sleeves have slotted design and an external taper. They are usually not surface treated but oiled and are supplied with a lock nut and a locking device. They have an oil duct, distribution groove, and a threaded side. For stepped shafts, they have two supply ducts and distribution grooves on the outer surface.3. Withdrawal sleeves are used for mounting tapered bearings on to the cylindrical shafts. They facilitate easy mounting, securing and dismounting. They are suitable for both smooth and stepped shafts. Bearing sleeve can easily adapt to the shaft diameter. They are usually coated with a preservative, are slotted and have an external taper. This allows the sleeve to be used with wide spherical roller bearings. Withdrawal sleeves for oil injection have oil ducts and distribution grooves, on the threaded side.4. We supply the Adapter Sleeves in accordance with ISO H3/1-1979, both Metric and Inch.1. Adapter sleeve (H) --Adapter sleeves are the most commonly used components for locating bearings that has a tapered bore, onto cylindrical shaft seating's as they can be employed both on smooth shafts and stepped shafts. They are easy to mount and require no additional fixation on the shaft. Using adapter sleeves on smooth shafts, the bearing can be located at any position on the shaft . EESCO adapter sleeves are supplied complete with lock nut and locking device2. Adapter sleeve for oil injection (OH) -These sleeves have an oil supply duct (or ducts) at the threaded side of the sleeve and distributor grooves in the bore as well as the outside surface. Sleeves up to and including size 40 have on supply duct, larger sleeves have two.3. Withdrawal sleeve (AH) --Withdrawal sleeves can be used to mount bearings with tapered bore on cylindrical seating's of stepped shafts. The sleeve is pressed into the bore of the bearing that abuts a shaft shoulder or similar fixed component. The sleeve is located on the shaft by a nut or an end plate. The sleeves are slotted and have an external taper of 1:12 or 1:30.4. Withdrawal sleeves for oil injection (AOH) --These AOH sleeves have two oil supply ducts at the threaded side as well as oil distributor grooves in the circumferential and axial directions, both in the outside surface and the sleeve bore. If oil is injected through these ducts and grooves, an oil film is formed between the mating surfaces of the bearing and sleeve and between the shaft and sleeve, and the force required to mount the bearing is considerably reduced.Adapter Sleeve Applications1. Adapter sleeve is used tofix the conic aperture self-aligning ball bearing (self-aligning ball bearing, self-aligning roller bearing) on the non-bearing shoulder bearing. It is simply structured and its working is reliable. Easy to replace the bearing.2, Widely applied in the lines of textile, light industry, metallurgy, belt convey and transmission equipment, etc Application:l  Transmission, gearboxes, wheel hubsl  Cranes, elevator and lifting equipmentl  Agricultural, pumps, miningl  Rail and transport usel  General engineering applicationsl  Marine and Shippingl  Great value quality parts dispatched the same day    H3 Series Adapter SleeveNo.Dimension(mm)Bearing No.Weight(kg)d d1 B1 d2 Spherical Ball BearingSpherical Roller BearingH302151222251302K 2202K  H303171424281303K 2203K  H304201728321304K  2204K21304K0.04H305252029381305K  2205K21305K0.071H306302531451306K  2206K21306K0.095H307353035521307K  2207K21307K0.14H308403536581308K  2208K21308K  22208K0.17H309454039651309K  2209K21309K  22209K0.23H310504542701310K  2210K21310K  22210K0.27H311555045751311K  2211K21311K  22211K0.32H312605547801312K  2212K21312K  22212K0.36H313656050851313K  2213K21313K  22213K0.42H314706052921314K  2214K21314K  22214K0.67H315756555981315K  2215K21315K   22215K0.78H3168070591051316K  2216K21316K  22216K0.95H3178575631101317K  2217K21317K  22217K1.1H3189080651201318K  2218K21318K  22218K1.3H3199585681251319K  2219K21319K  22219K1.4H32010090711301320K  2220K21320K  22220K1.6H322110100771451322K  2222K21322K  22222K2.05Products PackingOur packaging is also very variable, the purpose is to meet the needs of different customers.The commonly used packages are as follows:1.Industrial package+outer carton+pallets2.Single box+outer carton+pallets3.Tube package+middle box+outer carton+pallets4.According to your requirementsFactory showGuanxian Xinyan Pillow Block Bearing Co., Ltd. is based in Shandong (Chi
