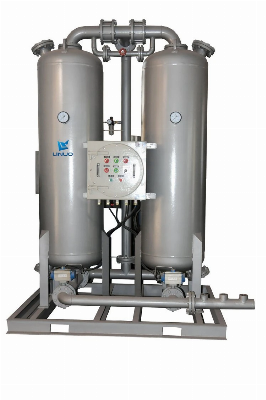

Heatless Adsorption Compressed Air Dryer Heatless Desiccant Dryer

Company Profile Advantage: 1. The excellent design of the two tower It can ensure activated aluminium oxide contact time enough to dry the saturated wet air entering in dryer to the needed dew point, 30% extra desiccative can compensate the desiccative consumption and ensure the life time, then guarantee the best performance 2. Adopts the large scale diffuser To ensure the air stream well proportioned to get through the desiccative level 3. Reliable controlling system 3.1 Within 10 minutes period dry the compressed air to very low dew point of - 40 centigrade or within 4 minutes period dry to -70 centigrade, and can be conditioned at site 3.2 Micro CPU control way, and the PLC control is optional 4. System Pressure drop is lower than 0.02MPa 5. Easily operation & easily maintenance Power on-off switch, the period mode setting, power on light, regenerative on light Product Parameters Technical specification: Rated Inlet Temperature: No more than 38 centigrade Maximum inlet temperature: No more than 49 centigrade Inlet oil content: Less than0.1ppm Outlet Pressure Dew Point: -40 centigrade (70 centigrade below zero is optional) Adsorbent: Activated alumina or molecular sieve Rated Working Pressure: 0.6~1.0MPa(1.0MPa or above is optional) Pressure loss: 0.02MPa Control Model: CPU (standard configuration), PLC is optional Working Mode: Automatic switching between tower A and tower B, continuous working Regeneration Way: Heatless regenerative Regeneration Air Consumption: 14% Cycle Period: 4~10min, adjustable Power Supply: 220V/50Hz Detailed Photos Parameters above are for your reference. Please contact us for large scale specific information. ModelProcessing capacityNm3/minLengthMMWidthMMHighMMonnection diameterWeightKGLN-101.36405501980DN25  130LN-151.76605701980DN25  150LN-202.06605702080DN25  250LN-303.07807201950DN40  260LN-505.07807202100DN40  260LN-8088608102100DN40  360LN-100108808502000DN50  460LN-130138808502100DN50  600LN-1701710409302150DN65  1100LN-2102112709702150DN65  1250LN-27027131011002250DN65  1500LN-32032131011002550DN65  1700LN-40040140012002600DN80  2000LN-45045145012002400DN100  2200LN-50050145012002500DN100  2300LN-60060165015002550DN125  2400LN-70070165015002850DN125  2800LN-85085190016002680DN125  3900LN-1100110230021602670DN150  4500LN-1500150260023403100DN150  5500LN-2000200300024003100DN200  7500LN-2500250300023003400DN200  8800Packaging & ShippingAfter Sales Serviceoverseas market installation and commissioning service is provided according to customer demand /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
