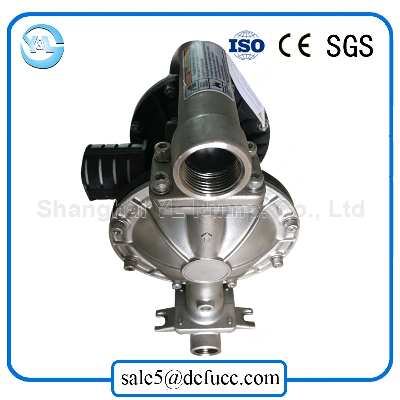

Qbk-50 Stainless Steel Air Compressor Diaphragm Pump

QBK-50 Stainless Steel Air Compressor Diaphragm PumpFeatures1. The air diaphragm pump has the function of self priming without rotating parts. It can achieve dry priming and wet priming, which self -priming height is 5m and 8m respectively.2. With sectional type structure, this self -priming pump can be used for conveying two different liquid by double diaphragm.3. Our pump can be used directly as a submersible pump, it uses air as the power source, and does not have the leakage and other security risks. This diaphragm pump has lower cost than submersible pump which is caused by the maintenance of motor.4. Pumps provide stall-free, ice-free operation.5. Bolt joint design provides even sealing pressure for optimal performance.6. Diaphragm,ball and ball seat adopt imported materials with longer service life.7. Due to their pneumatic motor, they could be used in potentially explosive areas.8. Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.Technical ParametersModel QBK-50Inlet/outlet Diametermm50inch2Max. Flow Ratem3/h35.22L/min587Headm0-84Max.Suction strokem8Max. Particle Dia.mm6Max. Air Supply Pressurekg/cm28.4Max. Air Consumptionm3/min2.8Package  Client FeedbackAbout UsWelcome to visit our factory!/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
