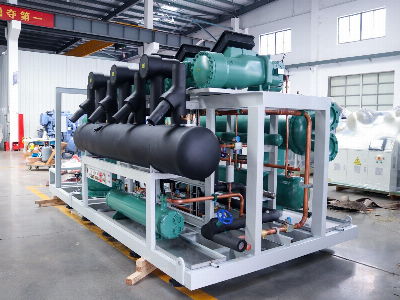

Water Cooled Compressor Racks for Drinking Factory Cooling

The condensing unit with Bitze r  Screw compressor for low temperature roomZhexue brand MBZLG series products are applicable to the large size -30ºC~-50ºC low temperature refrigeration system, as the large size low temperature cold rooms, ice making, and blast freezing etc., Features:1.Reliable system: famous brand compressor, PLC controller, high efficient oil separating system ,2.German bitze r  low temperature screw compressor, with the features of high efficiency, long service life, tiny vibration and low noise3.this series produset of world famous components, protection devices for compressor wrong direction, over heat, over load, over discharging temperature, low oil level, over high/low pressure of oil flow etc.4.the unit is matched with economizer, which can effectively increase the capacity for low temperature operation.Model Description:M BZ LG F 2-S 100 / J YM: MEOJILE productsBZ: compressor brad   BZ: Bitze r                    HZ: Hanbell                    FS: FUSHENG                    RF: RefComp                    FR: FrascoldLG: Compressor type   LG: screw compressor                    BF:piston compressor                    WX: scroll compressorF: condenser type      F: air cooled/ Evaporative condenser                     W: water cooled2: compressor qtyS:  S: two stage compressor  /: single compressor100: HPJ :  room temperature range  H: (+5~+20ºC)                          M:(-10~+5ºC)L: (-30~-10ºC)J: (-50~-30ºC)Main Components :Compressor, condenser , pressure controller, pressure oil gauge, pressure sensor,filter vat filter core, liquid angle valve , accumulator, suction check valve, oil separator , oil safety valve, oil pipe ball valve, oil cooler, oil cooler valves, filter, oil dry filter, filter core, solenoid valve, economizer, sight glass, expansion valve,touch screen, LP sensor , PLC controller, Siemens HMI.Specification:BI TZER low temp. compressor racks specification list Unit modelMBZLGF3-225(L)JYMBZLGF3-330(L)JYMBZLGF3-375(L)JYMBZLGF3-480(L)JYRefrigerantR507(R404A)Power supply380V/3P/50HZCompressorModelHSN7471-75HSN8561-110HSN8571-125HSN8591-160Qty3333Evaporating Temperature-50ºC~-10ºCEvap.Temp-25ºCCooling capacity(KW)324.9481.5537.3672-25ºCPower input(KW)171244.5273.6335.4-25ºCRunning current(A)273.3407.1459.3554.1-42ºCCooling capacity(KW)163.2234271.5334.5-42ºCPower input(KW)146.4218.1233.1295.8-42ºCRunning current(A)236.7367.8399.6492Liquid pipe(mm)DN50DN65DN65DN65Suction pipe(mm)DN1252*DN1252*DN1252*DN125Oil separator outlet(mm)DN80DN80DN100DN100Receiver  inlet(mm)DN65DN80DN80DN80Overall sizeL(mm)4000480048004800W(mm)1950210021002100H(mm)1700220022002200Cooling capacity and power are calculated by Tc. 35ºC, this is  also suitable for evaporation condenser./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
