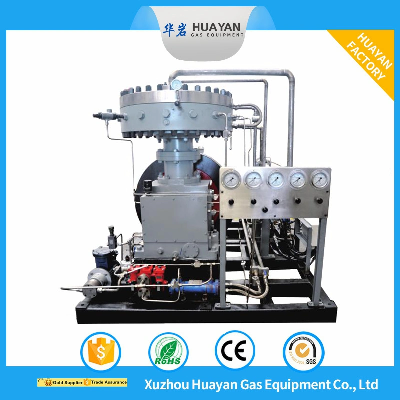

160bar 20nm3 High Compression Rate Natural Gas Diaphragm Compressor

 Completely Oil-Free Reciprotating Diaphragm Compressor( Blue Font To View Hyperlink)  Our company specialize in producing various kinds of compressors, such as:Diaphragm compressor,Piston compressor, Air compressors,Nitrogen generator,Oxygen generator ,Gas cylinder,etc. All products can be customized according to your parameters and other requirements.Process principle:Diaphragm compressor according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.Specfication:ModelGZ-15/30-200RemarksVolume FlowNm3/h15No-StandardWorking pressureSuction pressure:3.0MPaNo-Standard Exhaust pressure:20MPaNo-StandardCooling Method  Water-Cooled No-StandardIntake temperature°C0~30 Inlet pressureMPa0.3~0.4 Discharge temperature°C≤45ºC NoisedB(A)≤80 Power/FrequenceV/Hz380/50No-StandardMotor PowerKW2.2~45 Crankshaft speedr/min420 Overall dimensionL/mm1400  W/mm1000  H/mm1200 Diaphragm compressor advantages:No leakage: the compressor membrane head is sealed by static "O" ring. The O "ring is made of elastic material, with long service life and no dynamic seal to ensure no leakage during gas compression.Corrosion resistance: the compressor membrane head can be made of 316L stainless steel, the diaphragm is made of 301 stainless steel.Small tightening torque: "O" ring seal, can reduce flange bolt tightening torque, reduce shutdown maintenance time.  Parameter Table Of  GZ  Series Diaphragm Compressor ModelCooling water consumptiont/hVolume FlowNm3/hSuction pressure(MPa)Exhaust pressure(MPa)Dimension LxWxH(mm)Weight(t)Motor Power (kW)1GZ-2/31.02.00.00.31200x700x11000.52.22GZ-5/0.5-100.25.00.051.01400x740x12400.652.23GZ-5/13-2000.45.01.3201500x760x12000.754.04GZ-15/3-190.5150.31.91400x740x13300.754.05GZ-30/5-100.5300.51.01400x740x13300.73.06GZ-50/9.5-250.6500.952.51500x760x12000.755.57GZ-20/5-250.6200.52.51400x760x16000.654.08GZ-20/5-301.0200.53.01400 x 760x16000.655.59GZ-12/0.5-80.4120.050.81500X760X12000.754.010GZ-5/0.5-80.25.00.050.81400x740x12400.652.211GZ-14/39-450.5143.94.51000X460X11000.72.212GZ-60/30-402.1603.04.01400x800x13000.753.013GZ-80/59-650.5805.96.51200X780X12000.757.514GZ-30/7-301.0300.73.01400 x 760x 16000.655.515GZ-10/0.5-100.2100.051.01400 x800x 11500.54.016GZ-5/80.25.00.00.81400x800x11500.53.017GZ-15/10-1000.6151.0101400x850x13201.05.518GZ-20/8-401.0200.84.01400x850x13201.04.019GZ-20/32-1601.0203.2161400x850x 13201.05.520GZ-30/7.5-251.0300.752.51400 x 850x13201.07.521GZ-5/0.1-71.05.00.010.71200x750x10000.62.222GZ-8/51.08.00.00.51750x850x12501.03.023GZ-11/0.36-60.4110.0360.61500 x 760x 12000.753.024GZ-3/0.21.03.00.00.021400 x 800x13001.02.225GZ-80/20-351.5802.03.51500x800x13000.95.526GZ-15/30-2001.0153.0201400x 1000 x 12000.84.027GZ-12/4-351.0120.43.51500x1000x15000.85.528GZ-10/0.5-70.4100.050.71500x760x12000.753.029GZ-7/0.1-61.07.00.010.61200x900x12000.83.0    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
