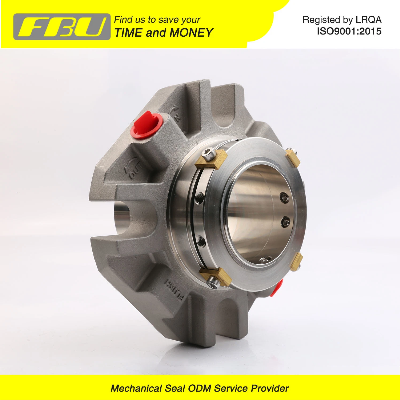

Double Cartridge Mechanical Seal Kdc for Chemical Pumps

KDCThe Standard Stationary Double Seal Solution for Higher Effeicent OEM CustomersOperation Parameters:•  Temperature: -20 ~ 220ºC•  Pressure: 0-25Bar•  Linear Speed: up to 25m/s•  Sealing Product: Acid, alkaline, low percentage of pulp, water, oil and other similar medi  Materials:•  Seal Face: SSIC/TC/CARBON•  Rubber: EPDM/ FKM /Aflas/ Kalrez•  Springs: ALLOY276•  Metal Parts: 316SS/DUPLEX/ALLOY276/904LKey Features:•  Stationary face compensation technology.  •  Solid seal structure reduces deformation at high temperature and low temperature conditions.•  Intergrated and Bi-directional diversion, sleeve with pump ring.•  High speed limits, up to 220 degree. No seal face drop or displacement.•  Higher pressure limits, up to 25 bar.•  Wet Part in Duplex steel, 904L, Alloy 276 avaiable.•  Suitable for API Plan 52/53A/53B/54.NODecriptionMaterialNODecriptionMaterial1Inboard Rotary FaceSSIC/TC11SpringAlloy 276 2O-RingEPR/FKM/Aflas/Kalrez12Outboard Stationary FaceCarbon-316SS3SpringAlloy 27613O-RingEPR/FKM/Aflas/Kalrez4Inboard Stationary FaceCarbon/SSIC/TC14CirclipAlloy 276 5O-RingEPR/FKM/Aflas/Kalrez15O-RingEPR/FKM/Aflas/Kalrez6Shaft Sleeve316SS16Drive Screw316SS7O-RingEPR/FKM/Aflas/Kalrez17Clamp Ring316SS8Gland316SS18Setting ClipBrass9Outboard Rotary FaceTC-316SS19Clip Screw316SS10O-RingEPR/FKM/Aflas/Kalrez20GasketAF1Size(mm)φAφBCφDφDmEFH25105.062.043.060.033.153.413.228105.062.046.060.033.153.413.230105.067.048.065.033.153.413.232110.070.050.065.033.153.413.233110.070.050.065.033.153.413.235113.072.053.068.033.153.413.238135.080.056.078.033.153.413.240135.080.058.078.033.153.414.242135.080.061.078.033.153.414.243135.080.061.078.033.153.414.245138.082.562.579.033.153.414.248138.082.565.582.033.153.414.250150.087.068.085.033.153.414.253150.097.072.095.033.153.414.255150.097.073.088.033.153.418.060157.0102.078.0100.033.153.418.065165.0109.084.8107.033.153.418.070178.0118.593.0116.033.153.418.075190.0129.0100.0125.044.163.918.080195.0135.0106.4131.044.163.918.085198.0139.0109.5135.044.163.922.090205.0145.0115.9142.044.163.922.095208.0148.0119.1145.044.163.922.0100218.0154.0125.4151.044.163.922.0   Pressure Chart0000About FBU• FBU was established in 2007, is specialized in designing, developing, and manufacturing mechanical seals and sealing support system.Testing Capability•  Secondary dimension image measuring instrument, digital display altimeter, spring power tester, shore hardness tester, plane flat crystal, outer diameter micrometer, inner diameter dial gauge, caliper with table, etc advanced first-class testing equipment is guarantee of product quality and reliability!Certificate of Approval•  FBU has been audited by LRQA ISO 9001: 2015 certification and all products are manufactured in accordance with international standards ISO, ANSl, DIN, and APl.FAQ:•  Are you a factory or a trade company?    → We are a factory with more than 13 years industrial experience.•  Where is your company located?    → We are located in Suzhou, China.•   Do you have a quality management system?     → We have been audited by LRQA ISO9001:2015 certification and all products are manufactured        in accordance with international standards ISO, ANSI, DIN and API.•  Which payment terms can you accept?    → T/T, L/C, D/P,  Western Union, PayPal.•  How long is the normal delivery time?   → Within 7-20days. If have stock, it about 2-3days.•  What 's your shipping ways?   → By sea, by air and by express (DHL, Fedex, UPS, TNT, EMS etc.)/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
