High Performance Vee Packing for Pump From Factory

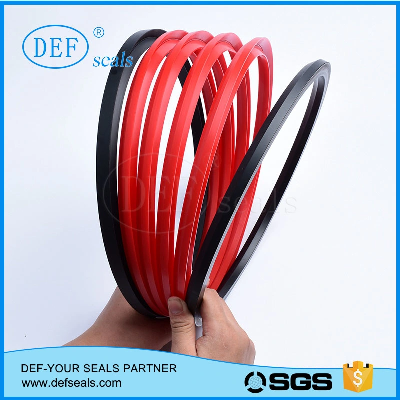

Product Introduction:V Packing Seals are one of the seals used for reciprocating motion, its section shows a V shape. We seldom use them alone, normally, combination using of pressing ring, back-up ring and several v rings, the number of v rings depend on the pressure. V Packing Seals are mould pressing of rubber with fabric or rubber, normally NBR with fabric, hard rubber for press ring and back-up ring, hard plastic is also used for back-up ring. V Packing Seals mainly apply to piston and piston rod of overload equipments, providing good abrasive resistance and stability, as well as preventing extruding seals out of the gap. Moreover, it can provide best sealing even under harsh condition, like temperature change, unexpected pressure, axial/radial vibration, etc. Material:POM+PU+PTFE/Carbon Customied material is always welcom, like FKM(viton), FKM with fabric, NBR are all available. Material Character Profile:Pure Rubber: Water and air NBR: Mineral oil based hydraulic fluids FKM(viton): Various kinds of chemicals and high temperture Rubber with Fabric: Strengthen sealing rigidity and intensity, preventing extrusion, fitable for high pressure. PU: Abrasion resistant PTFE+Carbon: Preventing extrusion Product Function:Sealing for piston and rod of reciprocating hydraulic cylinder Application Range:Temperture: -40° C-+120° C Pressure: Under 25MPa Sliding Speed: 0.5m/s Medium: Mineral oil based hydraulic fluids, water, air or others Application:Vee Packings are multiple-lips (chevron) seals comprised of a group of endless rings and are popular for sealing rods and pistons. They can be used for low or high pressure applications and with single or double acting cylinders. NameHydraulic sealsSliding speed[m/s]15Temperature [° C]-45...+260Pressure Pr:   N/mm² (Max)60MediumMineral oil based hydraulic fluids,barely flammable hydraulic fluids,water, air and others.MaterialPTFE+bronze/carbon, PU, etc.Colorcoffee, green, grey green,redAdvantages1. Suitable for dry use (depending on the load).2. Very good temperature resistance.3. Compatible with most of the fluids in contact.4. Easy assembly, low friction coefficient.Applicationhydraulic cylinders, Pneumatics, PressesInjection moulding machines, ExcavatorMachine toolsCertificatesISO9001-2008, SGS  MOQ(M)10FOBFOB ShenzhenMethod of payment     T/T (bank account, paypal,western union)Delivery time5 to 7 working days, 2 days for in stockSupply ability5000000Pcs/MonthPackagingplastic film for inner packaging and cartons for outer packagingExport marketSouth Asia, Southest Asia, Europe, South America, North America,  Africa, Middle East, AusrialiaCompany show  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
