Expanded Graphite Packing

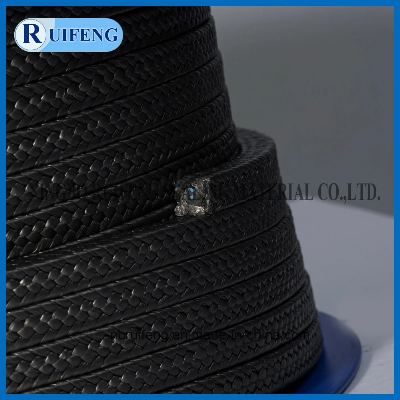

Graphite PackingGraphite packing is braided from flexible graphite yarns,which are reinforced by cotton fiber, glass fiber,etc.Mix nrmal graphite packing with carbon fiber, synthtic fiber, or metal alloy wire(respectively) can be improved the reliability, the temperature and chemical resistance for longer packing life and can be used in any application.Carbonized Fiber Packing Impregnation in graphiteDiagonal braided to form a dense but pliable packing,each carbonized fiber is pre-impregnated with graphite.It is premium service packing for media of weak chemical corrosion and grains of particles exit.ApplicationThey are the ideal choice for high temperature rotary slurry service, such as rotary shafrs of pumps, agitators,mixers,crystallizers,filters, continous digesters etc.Geneal Parameter  Technical dataRotatingReciprocatingValvePressure3 Mpa10 Mpa25 MpaShaft speed15 m/s rotaryTemperature-200°C ---450°CPh2-12Other reinforced material is also available.  NAMESIZEGraphite PackingLess than 8*8mmPure cotton fiber/ glass fiber graphite packing8*8~60*60Non-sulphur graphite packing(sulphur content less than 100ppm)8*8~60*60Corrosion inhibitor graphite packing8*8~60*60SS wire reinforced graphite packing8*8~60*60Copper wire reinforced graphite packing8*8~60*60Nickle wire reinforced graphite packing8*8~60*60Graphite packing diped by Four fluorine emulsion8*8~60*60Nickel-based expandable graphite packing(Outside braided inconel jacket)8*8~60*60Nickel-based non burning loss expandable graphite packing(Outside braided inconel jacket)8*8~60*60Nickel-based non burning loss expandable graphite packing(Outside crocheted inconel jacket)8*8~60*60Nickel-based non burning loss expandable graphite packing (Outside crocheted inconel jacket)8*8~60*60High temmperature high pressure steam valve packing(all metal shell)12*12~30*30Carbon fiber packing (diped by four flourine emulsion)8*8~60*60High carbon fiber packing(exported carbon fiber from Japan)8*8~60*60Graphite PTFE packing with oil (black colour)8*8~60*60PTFE packing without oil (white colour)8*8~60*60PTFE packing fiber packing (white colour)8*8~60*60Acry fiber packing8*8~60*60Ramine packing8*8~60*60Aramid packing8*8~60*60High carbon fiber corner graphite packing8*8~60*60Aramid corner four flourine packing8*8~60*60/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
