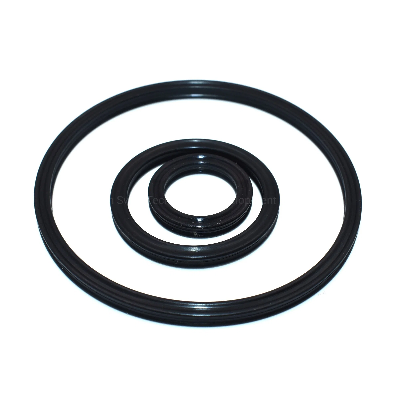

As568 Standard Quad Ring Hydraulic Quad-Ring Seals Rubber X Ring

Product DescriptionAS568 Standard Quad Ring Hydraulic Quad-Ring Seals Rubber X RingX-rings can be used in a wide variety of static and dynamic sealing applications.  They are available in standard O-ring sizes.  Their four-lobed design provides a larger sealing area in comparison to a standard O-ring.  The double seal action requires lower squeeze levels to maintain an effective seal, thus reducing friction level and improving seal life.  X-ring parting lines are between the lobes, away from the sealing surface, therefore eliminating the problems of leakage often resulting from a parting lines irregular surface as found on an O-ring.  X-rings are designed to out perform a standard O-ring in rotary seal applications.  The four lobed configuration creates a more stable seal avoiding spiral twisting which can occur in reciprocating applications.  What's the difference between Quad Rings&O-Ring?Differences Between Quad Rings & O-Rings There are several main differentiators that separate standard O-Rings from X-Ring's four-lobed design. Standard O-Rings are built with a basic layout that provides simple leak protection, while Quad Rings have numerous advanced design qualities that allow them to provide enhanced protection. Quad Ring Seal's offer a unique spiral twist design coupled with an inner lobe sealing surface that allows for prolonged seal life and improved operational quality.Buna (or Nitrile) material is great for all but the most extreme applications. It works from -40-degrees F to 250-degrees F, and has good wear resistance. It works with oils.FKM (or Fluorocarbon) works for almost every application. It can withstand temperatures from -25-degrees F up to 400-degrees F.  MaterialHardness  (Shore A)TemperatureStandard SizeAvailableNBR(Buna, Nitrile)FKM(FPM)EPDM Silicone(VMQ)HNBR FFKM(FFKM, Kalrez)60~90 70~90 60~90 40~70 60~90 70~90 -40ºC-110ºC  -20ºC-220ºC  -45ºC-150ºC  -55ºC-204ºC  -48ºC-180ºC-18ºC-326ºCAS-568(USA)JIS-B2401(Japan)DIN-3771(Germany)BS-1516(UK)ISO3601(International)R(France)ID≤2000mm     CS≤40mmResistanceColorCertificateApplication Hydraulic Fluid  Engine OilChemical  Ozone & UV Steam & Hot Water  Low Temperature  High TemperatureBlack  Brown  Red  GreenWhiteBlue  ClearCustomizedISO9001SGSRoHSREACHAuto Industry  Construction Machinery  Machine Tool Equipment  Food Health  Water Treatment Chemical Processing  Hydraulic Pneumatic  Industrial Manufacturing   Detailed Photos   Company ProfileWe Tianjin SWKS is a manufacturer of rubber products and plastic parts with many year experience in China. We have the trade department,engineer department, production department and after-sales service department. Our engineers could recommend sizes according to using, draw the drawings according to samples, even help to design it. OEM and ODM are welcome,you could get satisfied service there,7 days and 24 hours quick reply.CertificationsPackaging & ShippingDetails: 1. Small Package will shipping by express such as DHL ,TNT ,UPS ,FEDX and so on , Customer should undertake the shipping cost. 2. Big Volume products often shipping by sea ,FOB or CIF is depend by customers. Delivery Time:7-15 workdays after confirmation of the sample or according to customers' order quantity3. There is shipping way by air, by sea/ocean, by express.FAQ1. Q: What is your main product range?A: SWKS is professional in designing, developing and manufacturing rubber products. For example, o rings, oil seals, piston and rod seals, rubber shock absorbers and custom rubber products.2. Q: What kinds of rubber materials are available?A: NBR, FKM, VMQ, EPDM, CR, SR, PU... other rubber compounds can be with your request.3. Q: What shall be provided before a offer?A: The materials and dimensions are needed before a offer. If the product is nonstandard, the drawing or sample shall beprovided.4. Q: What's your payment terms and delivery date?A: T/T, L/C, Western Union, Paypal,etc. Normally, delivery date is 7-25days according to the order.5. Q: Which shipping method will be used for a delivery?A: DHL, FedEx, TNT, UPS, EMS ... By seal or by air are also available.6. Q: How to packing the goods?A: All goods will be well packed into pp bags and outer cartons. Special packing can be available with customers' request.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
