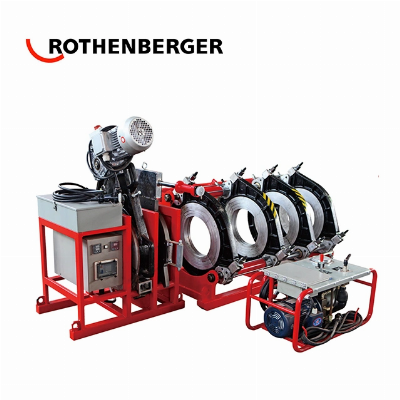

Plastic Pipe Butt Fusion Welding Machine (SHD630)

Plastic Pipe Butt Fusion Welding Machine (SHD630)Application and features1  Suitable for butt welding of plastic pipes and  fittings made of PE, PP, and PVDF in a ditch in worksite or workshop2  Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate, and optional parts3  Removable PTFE coated heating plate with high accurate temperature control system4  Electric planing tool with safety limit switch.5  Be made of lightweight and high strength material;6  Specially designed with a clamp opening angle of 45° Low starting pressure and high reliable seal structure7  Changeable welding position brings more convenience while welding various fittings8  Separate two-channel timer records times in soaking and cooling phases.9  High-accurate and shockproof pressure meter indicates clearer readings.Optional parts :1   Stub end device for short flange stub2 Crane Data logger.technical parameters Model SHD630 Pipe Size (mm) 315, 355, 400, 450, 500, 560, 630 Heating Plate Max. Temp. 270ºC Temp. deviation in surface (170~250) ± 7ºC Pressure adjustable ranges 0~6.3MPa Working voltage 380V, 50Hz Heating plate power 9.2KW Planing tool power 1.5 KW Hydraulic unit power 1.5 KW Total power 12.2 KW Weight 617Kg Packing dimension Basic frame   1680× 1280× 1240 Support 860× 1160× 1480 Hydraulic unit 740× 490× 620 CompanyOur company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD  is the leading  manufacturer of PE pipe butt fusion equipment in China.  We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.Certificatepacking cases    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
