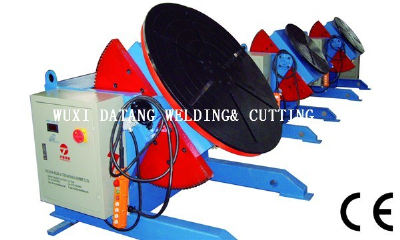

Auto Welding Positioner

HB Welding PositionerThis welding positioner is mainly used for the accessories and parts welding and assembling. It makes the workpiece at the suitable position for welding or assembling by the working table overturning and rotating, which is one of necessary equipments for the company manufacturing. During the manufacturing, it can improve the welding quality, reducing the workpiece moving time and the labor working force, which is one of best way to improve the working effeciency. This equipment has the advanced structure, easy controlling and convenient operation, and good for improving the welding quality, which is the ideal equipment to improving the welding quality. Note:1. Positioner can tilting from 0 to 120°, rotating 360° by VFD 2. Voltage standard is 380V-3PH-50HZ, but we can make 110-575V as per your requirement 3. This machine is controled by remote-control box, optional optional foot switch 4. Other more special requiements pease contact us Pictures:Standard models from 50kg-20TSpecial models: design as per customers' requirementsOptionals: chuck and foot switchCustomers' visitingNO.Technical  ParameterTypeHB1HB3HB6HB12HB30HB50HB100HB150HB2001Rated  loading  (Kg)1003006001200300050001000015000200002Max  eccenteric  Distance(mm)501002002002502503Max  distance  of  Gravity  center  (mm)1502003004005006004Working  table  size  (mm)φ 400φ 600φ 1000φ 1200φ 1400φ 1500φ 1800φ 2000φ 22005The  amount  of  table  T-beam  groove466Tilting  angle  (° )0° -90°0° -120°7Rotating  speed  (rpm)0.2-20.15-1.50.1-10.05-0.50.03-0.38Rotating  Power(KW)0.180.180.750.751.52.2345.59Tilting  speed  (rpm)  0.80.50.30.1410Tilting  Power(kW)  0.751.12.2345.57.511Structure  of  rotating  axesDirect  connection  of  reducerTilting  support12Speed  adjusting  wayRotating  speed    VFDTilting  speed  constant/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
