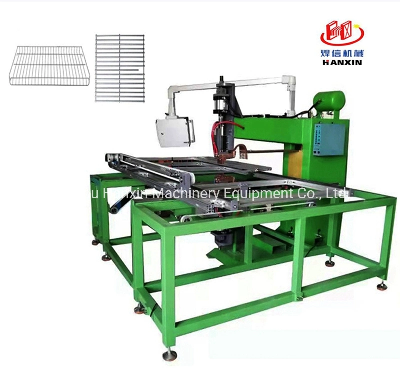

Xy Table Multi 100kVA Pneumatic Inverter Portable Spot Welding Machine

  Product Description1.The X-Y axis automatic spot(multi-point)welding machine includes two parts :a welding machine and a worktable .The Welding machine can be equipped with AC pulse power supply or an energy -saving and environmentally friendly medium frequency inverter DC power supply,and design to single-head and multi-head long arm spot welding or multi-point welding structure,equipped with a welding mold that automatic moves along the XY axis,only need to input the coordinate date of the welding position,then can start the machine for automatic production .Manual placement and removal of the workpiece after finished a welding cycle.2.The structure of the equipment is flexible and the combination is convenient.It can be matched with different welding equipment;3.Adopted the programmable control system,automatic welding and manual welding can be freely switched,teach in jog to find    points according to the actual products ,high precision and accuracy;4.Confifue the control box to switch different welding specifications.It can set different welding current,welding time for different   welding workpieces,and the specifications can be one-key switching if need.5.Widely used in various fence mesh welding,shelf welding,supermarket shopping cart welding,shopping rack welding,pet cage   welding,various sheet metal welding,etc.6.Manufactured in accordance with international ISO Standard and European CE Certificate.Product ParametersModeRated Primary VoltageRated FrequencyRated Duty CycleRated Capacity(Kva)Welding Arm Length(mm)Max Short Circuit Current(A)Max Welding Range(mm)Machine Dimensions(L*W*H  mm)Work Table Dimensions(L*W*H  mm)DN-8080AC380V(AC220/415/4400/550V can be customized)50/60Hz20%8080022700600*8001300*600*19002000*2200*1200DN-801008080022700800*10001400*600*19002200*2250*1200DN-100100100800280001000*10001400*600*19002200*2250*1200DN-1001201001000280001000*12001700*600*19002200*2500*1200DN-15010015080031000800*10001400*600*19002200*2250*1200DN-1501201501000310001000*12001700*600*19002200*2500*1200Packaging & Shipping Company ProfileSuzhou Hanxin Machinery Equipment CO.,LTD is a professional automatic welding equipment manufacturer,which specializes in designing,producing,sale and service together.Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Single-phase/Three-phase Secondary Rectifier Spot Welder,Wire Mesh Welding Machines,Sink Producing Line,Automatic Argon Arc Seam Welding Machines,Wire Ring Making and Welding Machine,2D Wire Forming Machine,High/Ultrasonic/Medium Frequency Induction Heating Machines,and other automatic equipment.FAQQ1.Are you factory? A1.Yes,Welcome to visit our company and factory. Q2.All products have a warranty? A2.Yes,Our warranty term:12 months from B/L date . Q3.What is the shipping way? A3.1.Vessel shipping         We suggest Seaboat shipping which is economical delivery way for heavy weight and big dimension goods     2.Airplane shipping        No,freight will be exceeding your budget,not economical    3.Train Transportation Shipping       Cos your country is landlocked country without port,train shipping is also a good choiceQ4.What is the payment terms?      A4.1.Payment one-T/T Q5.What is after-sales service?A5.1.Machine together with instruction book and machine accesorries      2.Machine will be rejusted well before leaving our factory      3.Anytime will reply you on the techinical problem      4.Installment cost to your door should be paid by your side/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
