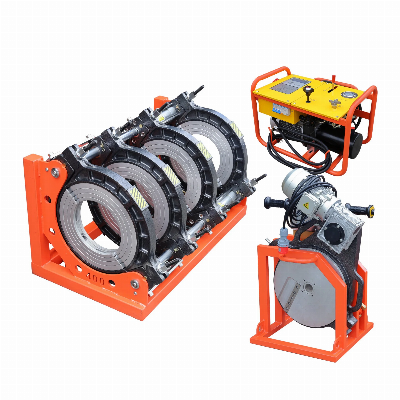

180-400mm Plastic Pipe Welding Butt Fusion Welding Machine

 Technical parametersModelWP400BSuitable materialsPE, PP, PVDFRange110-125-140-160-180-200-225-250-280-315-400mmPower supply220VFrequency50 HzTotal power9.1KW         Heating plate6.5KW         Planing tool1.1KW         Hydraulic station1.5KWMax.Pressure8.0MPaHydraulic oilL-HM46Max.Temperature of heating plate270ºCTemp.Deviation in Surface±5ºCTotal Weight376kgNet weight370kg Selection Chart for Budget Hydraulic Butt WeldingSNModelWelding rangePower supplyRemarks1WP160B63-75-90-110-125-140-160 (mm)220V, 50Hz 2WP200B63-75-90-110-125-140-160-180-200 (mm)220V, 50Hz 3WP250B90-110-125-140-160-180-200-225-250 (mm)220V, 50Hz 4WP315B110-125-140-160-180-200-225-250-280-315 (mm)220V, 50Hz 5WP355B160-180-200-225-250-280-315-355 (mm)380V, 50Hz 6WP400B160-180-200-225-250-280-315-355-400 (mm)380V, 50Hz 7WP450B200-225-250-280-315-355-400-450 (mm)380V, 50Hz 8WP500B250-280-315-355-400-450-500 (mm)380V, 50Hz 9WP630B315-355-400-450-500-560-630 (mm)380V, 50Hz            Basic frameFeatured by· Italy DNP quick coupler· Chromated hydraulic cylinder made    of 1045(ASTM)/S45(JIS)/C45(DIN) steel· Chromated integral shaft made   of1045(ASTM)/S45C(JIS)/C45(DIN) steel· Base made of Q235 steel with spraying treatment· Cast aluminum clamps, sandblasting & Spraying   treatmentHydraulic stationFeatured byIntegrated LCD display and control220V asynchronous motorCHNT electricity leadkage protection switchØ100mm presure meterRelief valve, regulating valve, maintaining valve  Planing toolFeatured by HSS blade with double edgeDie-cast aluminum trimmer plate, durable and anti-corrosionAluminum alloy frame of motor with good heat dissipation performanceCarbon brush motor with pure copper wireHeating plateFeatured by Bakelite handle with high insulating property and thermal insulationThermocouple temperature sensorHeating elementTeflon Coating imported from Daikin in JapanAviation plug  General terms1. Payment We accept 30% TT deposit and 70% balance payment before delivery or 100% TT in advance.2. Lead timeStandard items and light-OEM items, WELPING can finish in around 10-15 days.3. Warranty18months from delivery date. We take full responsibility for parts with quality problems and provide them for free. 4. Customized designOur experienced technical team can develop different solutions according to customers. MOQ is required for special requirements.5. About agency businessWe look forward to cooperate with influential company. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
