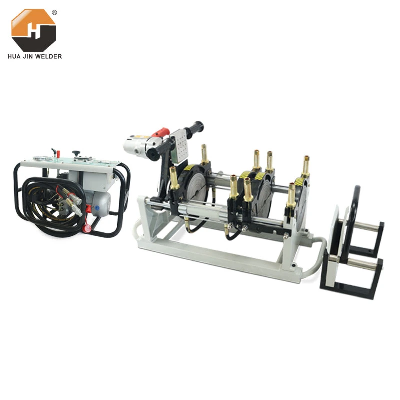

HDPE 160 Hydraulic Butt Fusion Welding Machine/ Plastic Pipe/ Termofusion

HDPE 160 Hydraulic Butt Fusion Welding Machine/ Plastic Pipe/ TermofusionProduct Details:Product Name: 160mm Pipe Hydraulic Butt Welding Fusion MachineItem No.: HDC-160Welding Type: Hydraulic Pump DriveBrand Name: Neutral, HUAJIN or OEMColor: Red,Black and customizedGuarantee: 2 years quality warranty and spare parts factory cost.MOQ: No MOQ Welding Introduction For HDPE:1. Fix the proper clamps on the machine rack.2. Put HDPE pipes on the clamps and tighten the bolts.3. Mill the end of the HDPE pipes with the facer.4. Put the heater plate on the machine rack and heat the pipes for proper time.5. Remove the heater plate and connect the HDPE pipes. ModelHDC160Pipe size(mm)40mm,50mm,63mm,75mm,90mm,110mm,125mm,140mm,160mmHeating plat Max temp270ºCTemp deviation in surface(170-250)±5ºCMax tolerance of welding jointing0.3MMMax working pressure hydraulic station6MpaWorking voltage220VWorking frequency50-60HZMotor power/voltage of hydraulic station0.75KW / 220VPower/voltage of heating plate1KW / 220VPower/voltage of planning tool motor0.9KW / 220VTotal Power2.65KWOverall weight of machine(kg)111KGSCompany ProfileOUR MACHINESEXHIBITION   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
