Scaffolding Welding Machine Scaffolding Supports Welding Equipment Welder Tool Inverter Welder

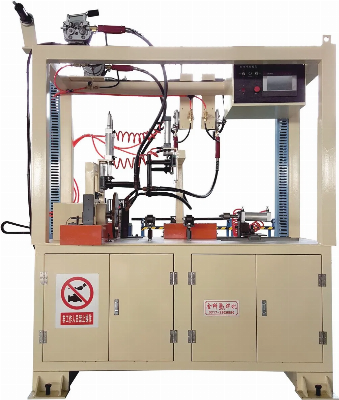

Product detailsAutomatic U-head Jack Scaffolding Welding MachineThe equipment is our patented product, patent number: ZL2016 20453093.8This equipment is a special welding machine (with reinforcing plate) for the production of building top support, which can realize automatic welding of top support without spot welding. The equipment is equipped with four high-performance welders working at the same time, the workpiece is automatically turned over, welding is completed in one time. Greatly improve the work efficiency. The equipment is mainly used for: automatic welding of scaffolding top support screw. (No manual spot welding required).Scope of welding parts applicable: (can be customized according to customer requirements)1. Lead screw tube length: 0.2-0.8m.2. Lead screw diameter: Φ38, Φ42, Φ48, Φ603. Tray diameter: ≤250MM4. Reinforcing piece length: ≤80MMEquipment features:1. The ideal weld formation reduces the grinding time and waste of welding material, and the weld is uniform and beautiful.2, PLC+ industrial touch screen, man-machine interface. The components of the control system are imported or well-known domestic brands. The welding speed is stepless and adjustable, the operation is simple and convenient, the working performance is stable and reliable, and the machine, electricity and gas control is integrated.3, pneumatic clamping workpiece, fast speed, welding gun Angle humanized adjustment, improve the work efficiency.4, fast welding speed, efficiency than manual welding more than 2 times. Reduced labor intensity. ParameterScaffolding typesJack baseSample Voltage380VPower(kw)20Motor typestepper motorDuty cycle100%Air pressure adjustment range(MPa)0.2-0.8Maximum adapt to the work piece(mm)1000Spindle speed(rpm)0.5-200The speed of the wire feed  (m/min)2---14Spindle speed  control modePLCTorch adjustment methodPneumaticThe main dimensions  mm (L * W * H)1.42*0.8*1.65MWeight300KG  Company honors and qualifications:  Corporate office area:With high quality products and excellent reputation, Golden Lion sells well all over the world, helps enterprises solve production problems, helps enterprises develop, and establishes long-term cooperative partnership with well-known enterprises at home and abroad. Your success is the eternal pursuit of Golden Lion welder! Let us hand in hand, sustainable development, create brilliant!Frequently Asked QuestionsIf I have some problems, what should I do?-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidanceHow long is the warranty?-We offer a 1-year warranty(except for the consumable parts like Lens). The supplier will provide detailed information as soon as possible.If you need help, we have a professional team to help you. If you have other mold needs technical instruction and video instruction are also provided.Packaging&Shipping1. Cleaning machine.2. Wrap all the machine and parts with bubble film and plastic film.3. Forklift the packed machine to the container.4. Choose the optimal routes and transportation modes according to the distance.If you have any questions,please contact us!  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
