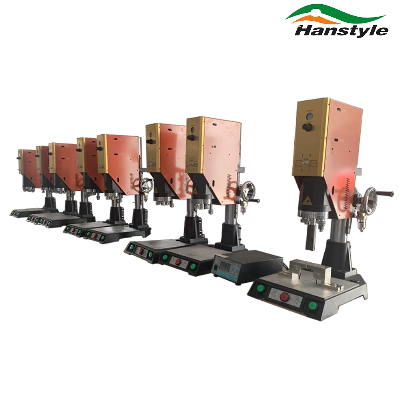

Top Manufacture Ultrasonic Plastic Welding Equipment of Medical Components

Top Manufacture Ultrasonic Plastic Welding Equipment of Medical Components  Product DescriptionUltrasonic welding is the principle of fusion between the surfaces of two objects to be welded to form molecular layers by friction with each other. Ultrasonic welding is the conversion of 50/60 Hz current into 15, 20, 30 or 40 KHz electrical energy by means of an ultrasonic generator. The converted high-frequency electrical energy is again converted into high-frequency vibrations of tens of thousands of times per second through the transducer. The welding head transmits the received vibration energy to the joint of the workpiece to be welded. In this area, the vibration energy is converted into heat energy by friction, and the surface of the object to be welded is melted to complete the effective bonding. Nowadays, ultrasonic welding is widely used in many industrial production fields.  Product Specification  Model No:H-UPW20-2000 Language:Chinese/EnglishControl Panel:Text ScreenFrequency:20KhzFrequency Range:0.25KhzPower:2000W     Amplitude adjustment:1%Input voltage:220VWelding head stroke:75mmWelding Time:0.01-9.99SAir Pressure:0.1-0.7MpaCooling System:Air Cooling Welding Area:Φ150mm   Dimensions: 700*400*1000mmElectric Box Size:380*280*120mmWeight:82kgsProduct ApplicationUltrasonic plastic welding machine has been widely used in aviation, boats, cars, electrical appliance, package, toys, electric, medical, auto parts, fishing and textiles etc. For example: disposable transfusion filter, blood plasma whizzer, valve bag, plastic wine bottle cap, dish washer waterwheel, plastic toys, car lamp,plastic fake bait, charger shell and mobile hanging drop welding, disposable lighter shell welding etc. Besides: car door plaque welding, car motormeter welding, car lamp car mirror welding, sun visor welding, car inside accessories welding.Apply for ABS, PE, PC, PS, PVC, PP, ABS & PC complex, Acrylic etc. materials.Product Advantage1.Automatic frequency chasing, no need for manual frequency modulation, automatic detection of abnormal frequency.2. Intelligent protection: power overload, high temperature, excessive frequency deviation, welding head damage, high current, etc.3. Stepless amplitude: stepless amplitude control, with 1% amplitude increase or decrease, adjustable from 0 to 100%, according to the size of the welding parts4.Small size, material, requirements, etc. to give the most suitable power output, effectively avoid product breakdown, burns and other undesirable phenomena.Company ProfileCertificationsFeedback   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
