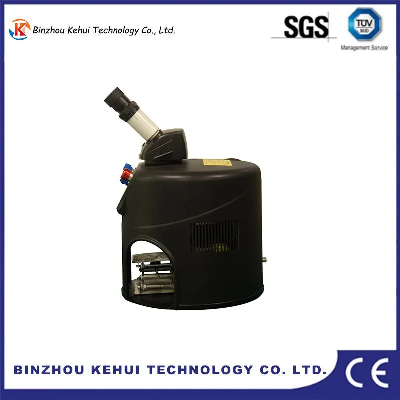

100W Mini Laser Beam Welding Machine Spot Welder

Technical Parameters Input voltage AC220V/50HZ±10%, 2KW; AC220V/50HZ±10%, 3KW Power 150W Current regulation 5--200A Pulse width regulation 0.1--20MS Frequency regulation 0-35HZ Laser wavelength 1064nm Maximum single pulse energy 45J/60J Laser divergence angle ≤5rad Beam diameter 0.5--3mm Laser instability ≤±2% Continuous working hours 16h ≥ Welding focal length F=110mm Magnification 10X Size 850*500*600mm Net weight 90KG Gross weight 105KG   FAQ FAQQ:What materials can be welded by laser welding machine?A:Our laser welding machine can weld on die steel, carbon steel, stainless steel, alloy steel, copper and copper alloys and other materials. If you are not sure whether your material can be welded, please contact us and we will test it for you for free. Q: Do you have after sales support? A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.Q: I am not sure if this machine suitable for my work? A: Don't worry, just tell me your working materials, max working thickness, then I will recommend you the most suitable machine for you.Q:Can you arrange the shipment for me ? A:We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are availableQ: How to install and run the machine? A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
