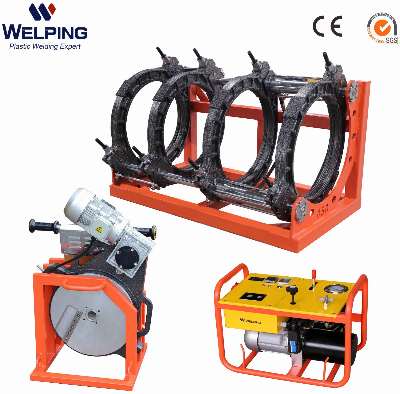

250 280 315 450mm Butt Fusion Welding Machine China Factory Price

ModelWP450BSuitable materialsPE, PP, PVDFRange180-450mmStandard reducers (mm)180-200-225-250-280-315-355-400-450mmPower supply380VFrequency50Hz, 3PHTotal power8.7 KW         Heating plate6.5 KW         Planing tool1.1KW         Hydraulic station1.1KWMax.Pressure0-16MPaHydraulic oilL-HM46Max.Temperature of heating plate270ºCTemp.Deviation in Surface±5ºCTotal Weight337kgNet weight307kgBasic Frame plywood1160*715*800mm planing tool & heating plate plywood860*610*1020mm Hydraulic Unitplywood700*500*500mmBasic frameFeatured by· Italy DNP quick coupler· Chromated hydraulic cylinder made    of 1045(ASTM)/S45(JIS)/C45(DIN) steel· Chromated integral shaft made   of1045(ASTM)/S45C(JIS)/C45(DIN) steel· Base made of Q235 steel with spraying treatment· Cast aluminum clamps, sandblasting & Spraying   treatment  Planing toolFeatured by HSS blade with double edgeDie-cast aluminum trimmer plate, durable and anti-corrosionAluminum alloy frame of motor with good heat dissipation performanceCarbon brush motor with pure copper wireHydraulic stationFeatured by   220V asynchronous motorCHNT electricity leadkage protection switchØ100mm presure meterRelief valve, regulating valve, maintaining valveSNModelWelding rangePower supply1WP160B63-75-90-110-125-140-160 (mm)220V, 50Hz2WP200B63-75-90-110-125-140-160-180-200 (mm)220V, 50Hz3WP250B90-110-125-140-160-180-200-225-250 (mm)220V, 50Hz4WP315B110-125-140-160-180-200-225-250-280-315 (mm)220V, 50Hz5WP355B160-180-200-225-250-280-315-355 (mm)380V, 50Hz6WP400B160-180-200-225-250-280-315-355-400 (mm)380V, 50Hz7WP450B200-225-250-280-315-355-400-450 (mm)380V, 50Hz8WP500B250-280-315-355-400-450-500 (mm)380V, 50Hz9WP630B315-355-400-450-500-560-630 (mm)380V, 50Hz  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
