Auto Steel Bar Mesh Welding Machine

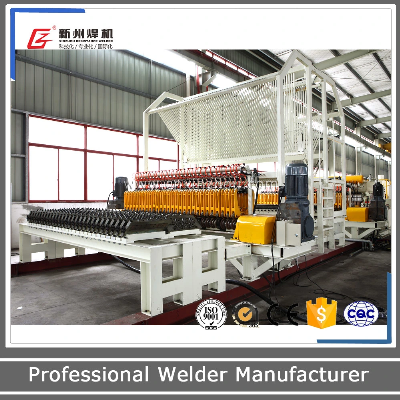

Fully Automatic Wire Mesh Welding Line (GWC-2800-C)Xinzhou GWC-C series mesh welding machine is created by our technical specialists with independent research and technology researches. The special wire feeding system has been implemented to ensure the smooth material feeding. The automatic two side unloading system are available to save the space between each mesh. For our C series mesh machine, the coiling material can be directly used for the main wire without bar straightener and cutting machine.   This GWC-3200-C welding machine is capable to weld steel bar/wire with diameter from 6mm to 12mm. The interval for main bar is stepless adjustable by every 1mm and the interval for weft bar is adjustable by every 50mm. The max. welding capacity is 12mm +12mm.The max. mesh width is 3200mm. The welding speed is about 60-90 rows/min.  Delta, Mitsubishi and Siemens servo motor control and PLC with touch screen have been implemented to ensure the smooth and accurate working process and to make human-machine interfere much easier. This machine satisfied the Chinese ISO90001 standard and EU safety certification standards.Technical Data:Power supply: Three phase AC380V, +10%~-10%; Duty cycle: 20%; Rated Power Input: 14X100kVA; Secondary no-load voltage: 8V; Max. Short Current: 32KA; Air pressure: 0.4-0.8MPa; Coolant pressure: 0.3MPa; Coolant flow: 80-100L/Min; Coolant temperature: 0≤ 30º C; Max Welding speed: 60- 90row/min; Max mesh width: 3000mm; Min. Spacing: 50mm; Wire diameter of power cable(copper cable): ≥ 150mm2; Wire diameter of grounding cable(copper cable): ≥ 75mm2; Air switch capacity: 900A; Water inlet and outlet diameter: G1½ ; Air Inlet diameter: φ 50mm; Welding machine main part weight: 11000kg; Dimensions: 55m× 7m× 5m; Our Guarantee!!1. One year guarantee time since machine leaves the factory2. Free component changes under the normal condition3. Our engineers will be sent to help the installation, debugging and training4..24 hours technical support /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
