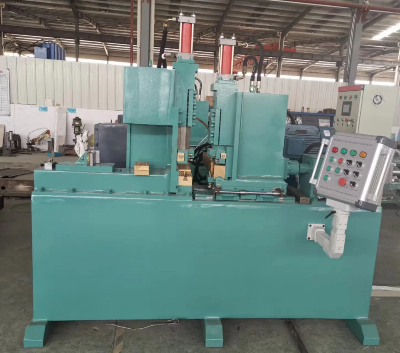

Casting Aluminium Radiator Butt Flash Welder

Detailed Product Description Casting aluminium butt flash welding machine Technical parameter:Input voltage          Single phaseAC380V±10%Welding transformer     AC 200KVA 1pcsControl system     Touch screen+PLC+microcomputer control main-board 1setsIt can be set the action of the welding head,welding current,welding time,emergencystop etc. Through the change-over switch to realize the adjustment between the actions,and keep the whole welding procedure working continuously.   Max compaction power of oil cylinder     30KNMax trust force of oil cylinder           60KNVertical stroke of left electrode     80mm (can satisfy product processing requirement                                         that the customer provides)Feeding stroke of right electrode    150 mm (can satisfy product processing requirement                                  that the customers provide)Cooling way      transformer,silicon controlled,hydraulic oil return  water coolingMax width of work-piece        120mmWelding ability              350mm2(die-casting aluminum)Working speed               about 20s/pcsProducts withstand voltage test     18kgs(air pressure)can keep no leak one minuteOperation availability     100%(calculated according to operation rate by the month )USES: Widely used in aluminum alloy, low carbon steel, alloy steel, non-ferrous metal tubes, rods, edition profiles or between different metal butt weld. Model NO.PowerMains voltageWelding transformerMax. pressure of cylinderCooling methodUNS-200200KVA380V    50HZSinglephaseAC 200KVA60KNTransformer, controlled silicon,hydraulic pressure scavenge oil, water coolingMax. propulsion forceMax. workpiece widthControl systemWelding abilityOutline sizemmWeight80KN120mmmicrocomputercontroller350mm22200*1200*2000 3000kg/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
