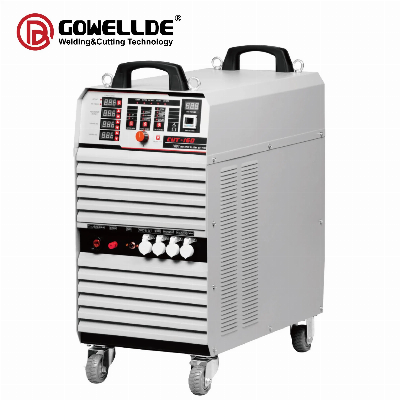

380V/160A, DC Inverter, IGBT Module Plasma Cutting Tool/Equipment Cutter Machine

380V/160A, DC Inverter, IGBT Module Plasma Cutting Tool/Equipment Cutter MachineFeatures:This CUT160 welding machine is standards Riland type machine. Riland company invented this Mosfet Technology inverter welding machine at the year of 1987. After continuously updating, the Mosfet inverter welding machine become very mature and very stable. We sincerely obey Riland original design because our experienced engineer, more than 15 years in this area, think that Riland design is very mature, and any change of the design may caused machine problem. A lot of other factory tried. we saw many examples. Inner picturesSpecification: TypeCUT160control modeIGBT inverterRated input voltageAC380VRated input current(A)40Rated input capacity(KVA)26.3Rated output current(A)160Cable cross-sectional areamains input(mm2)8power output(mm2)25ground wire(mm2)4Rated output voltage(V)144Duty cycle(%)100Rated no-load voltage(V)315Current adjustment range(A)40-160Quality cutting thickness (carbon steel)(mm)1~35Maximum cutting thickness (carbon steel)(mm)55Using plasma gasCompressed airGas pressure range(MPa)0.4-0.6Applicable air compressor capacity(m3)≥0.6Arc ignition modeHigh pressure non-contactEnclosure ratingIP21SInsulation ratingFCooling methodAirPower factor0.93Dimensions(mm)820*390*940Host weight(KG)70Company Information:       Shenzhen General Welder Technology Co., Ltd, located at Shajing Subdistrict, Bao'an district, Shenzhen city which is the core city for the inverter type welding and cutting machine. We focused on developing, marketing all kinds of welding and cutting machine and its related goods.        We have below series products:       *ARC welder series, including DIY product, light industry product, and heavy industry product.         *TIG welder series, including TIG&ARC series, TIG pulse series, TIG AC/DC series,      *MIG welder series, including integrated one and separated one, also the pulse MIG machine.       *Plasma cutting machine series including DIY series and heavy industry usage cutting machine.         *Submerge ARC welding machine.        We can also supply you the good quality spare parts of the welding machine. And the accessories of the welding machine.        Aiming to provide the best quality product at a competitive price for you. We want long and strong cooperation relationship with you, not short time.        Quality goes first, Price goes later. With quality and price, We can help your business grow up more quickly.        Last year our overseas market turnover is more than 30 million. We are aiming to do double this year.       Welcome, my friend. We are here and waiting for your inquiry.       Thanks and Best regards! /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
