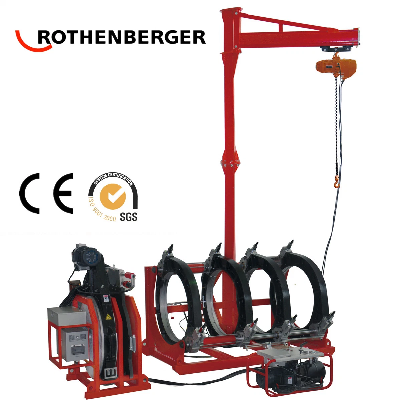

Plastic Pipe Butt Wleding Machine (SHD1000)

SHD1000 HDPE pipe welding machine( crane included)PE pipe welder, plastic pipe butt fusion welding machineApplication and Features:1  Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF                     ditch in worksite or workshop.2  Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for            planing tool & heating plate, crane with hoist and optional parts.3   Removable PTFE coated heating plate with high accurate temperature control system.4   Electric planning tool with safety limit switch enables to start it only when it is locked in            operation position.5    Made of lightweight and high strength material. 6    Low starting pressure and high reliable seal structure.7    Changeable welding position brings more convenience while welding various fittings.8    Separate two-channel timer records times in soaking and cooling phases.9    High-accurate and shockproof pressure meter indicates clearer readings.10  Labor saving and high efficient crane is available to lift planing tool and heating plate .The main parameters: Model SHD1000 Pipe size(mm) 630,710,800,900,1000 Heating plate Max. Temp. 270°CTemp. deviation in surface(170~250°C)
