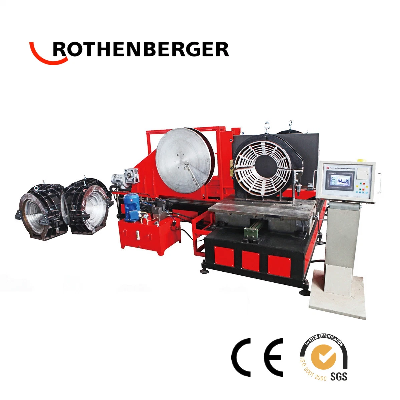

Plastic Pipe Fitting Elbow Machine R630W

Plastic Pipe Fitting elbow Machine (R630W)Application and features:*Suitable for fabricating elbow, tee, cross and Y shape (45 degrees and 60 degrees) fittings of PE, PP, PVDF in workshop. Also used to lengthen the injection moulded fitting or make the integrated fittings.*Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.*Removable PTFE coated heating plate.*Electric planing tool with safety limit switch.*Low starting pressure and high reliable seal structure.*Separate two-channel timer records times in soaking and cooling phases.*High-accurate and shockproof pressure meter indicates clearer readings.*SHG630 linear guide ways are equipped with heating plate and planing tool.*Products comply with 98/37/EC and 73/23/EEC standards.Optional parts*Special clamps for welding flange stub.*Special clamps for short spigot fitting.*Special clamps for welding Y shape (45 degrees and 60 degrees) fittings.  ModelR630WPipe size(mm)315, 355, 400, 450, 500, 560, 630Application  0~90 degrees elbow, tee, cross, 45 degrees 60degrees Wyes (Optional parts should be used)Heating plate max. temp.270 º CTemp. deviation in surface(170-250 degrees C)≤ ± 7 º CPressure adjustable ranges0~16 MPaWorking voltage380 V, 50 HzHeating plate power22  KWPlaning tool power4.0  KWHydraulic unit power2.2  KWTotal power28.2  KWTotal weight3510  KGSCompanyOur company  is the leading  manufacturer of butt fusion equipment in China.  We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.CertificatePACKING CASES  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
