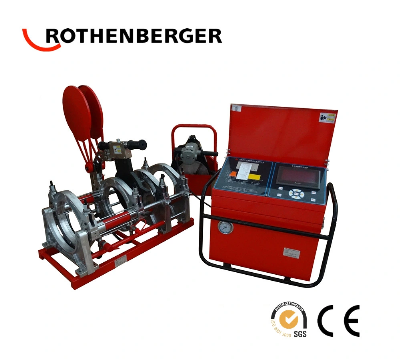

Qzd160/Qzd250/Qzd315 Automatic Butt Fusion Welding Machine

Automatic Welding Machine*Micro-computer contron system can inspect the automatic welding process.*Automatic butt fusion welding machine can be used at worksite and workshop.*Suitable for butt weld plastic pipes and fittings made of PE, PP and PVDF.*Removable PTFE coated heater plate with high accuracy temperature control system.*Main part of basic frame is made out of Aluminum alloys, light and handy structure, convenient to use.*Optional models: SHZ160, SHZ250, SHZ315.  Technical ParametersQZD160QZD250QZD315Welding ranges(mm)63, 75, 90, 110, 125, 140, 160110, 125, 140, 160, 180, 200, 225, 250160, 180, 200, 225, 280, 315Heater plate max. Temp.270 270 270 Heater plate surface temp. scope< ± 5 < ± 5 < ± 5 Pressure modulation range0~6.3Mpa0~6.3Mpa0~6.3MpaWorking voltage220V, 50HZ220V, 50HZ220V, 50HZHeater plate power1KW2.1KW3.1KWCutter power0.7KW1.1KW1.1KWHydraulic unit power0.75KW0.75KW0.75KWTotal power2.45KW3.95KW4.95KWTotal weight136KGS143KGS306KGS  CertificateCompanyOur company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
