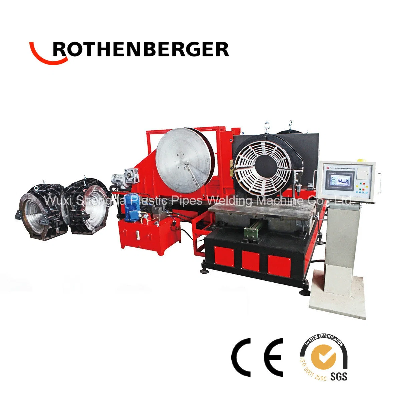

SHG800 Workshop Fitting Welding Machine

SHG800 Workshop Fitting Welding MachineApplication and features: *Applied to fabricate PE, PP, PVDF elbow, tee, cross fittings in workshop. Also used to lengthen the injection moulded fitting and make the integrated fittings. *Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings. *Removable PTFE coated heating plate. *Electric planing tool with safety limit swith enable to start it only when it is locked in the operation position. *Low starting pressure and high reliable seal structure. *Separate two-channel timer records times in soaking and cooling phases. *Digital pressure meter enables to control pressure accurately. *Linear guide ways are equipped with heating plate, planing tool and dragging plate. *Products comply with 98/37/EC and 73/23/EEC standards. Optional parts: *Special clamps for welding flange stub. *special clamps for short spigot fittings. ModelSHG800Pipe size(mm)450, 500, 560, 630, 710, 800Application0~90 degrees elbow, tee, crossHeating plate max. Temp. 270 degrees CTemp. Deviation in surface(170-250 degrees C)≤ ± 10 degrees CPressure adjustable ranges0~16 MPaWorking voltage380 V, 50 HzHeating plate power39 KWPlaning tool power4.0 KWHydraulic unit power4.0 KWTotal power47 KWTotal weight4900 KGS/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
