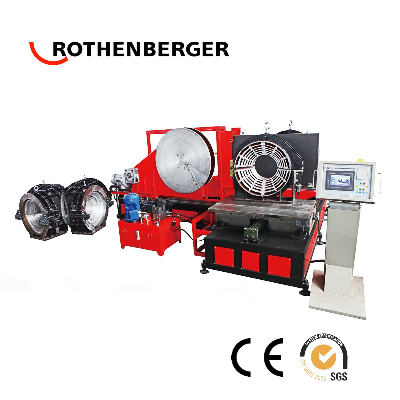

Workshop Fitting Fusion Machine (R450W)

Workshop Fitting Fusion Machine (R450W)Application and features:*Suitable for fabricating elbow, tee, cross and Y shape (45 degrees and 60 degrees) fittings of PE, PP, PVDF in workshop. Also used to lengthen the injection moulded fitting or make the integrated fittings.*Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.*Removable PTFE coated heating plate.*Electric planing tool with safety limit switch.*Low starting pressure and high reliable seal structure.*Separate two-channel timer records times in soaking and cooling phases.*High-accurate and shockproof pressure meter indicates clearer readings.*SHG450 linear guide ways are equipped with heating plate and planing tool.*Products comply with 98/37/EC and 73/23/EEC standards.Optional parts*Special clamps for welding flange stub.*Special clamps for short spigot fitting.*Special clamps for welding Y shape (45 degrees and 60 degrees) fittings.  ModelR450WPipe size(mm)250,280,315,355,400,450Application 0~90 degrees elbow, tee, cross, 45 degrees 60degrees Wyes (Optional parts should be used)Heating plate max. temp.270 degrees CTemp. deviation in surface(170-250 degrees C)≤±7 degrees CPressure adjustable ranges0~16 MPaWorking voltage380 V, 50 HzHeating plate power12 KWPlaning tool power4.0 KWHydraulic unit power2.2 KWTotal power18.2 KWTotal weight2850 KGS  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
