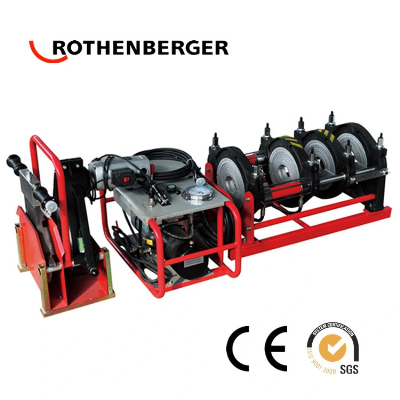

Plastic Pipe Butt Fusion Welding Machine (SHD250)

plastic pipe Butt Fusion Welding Machine (SHD250)Application and features1  Suitable for butt welding of plastic pipes and / or fittings made of PE, PP, and PVDF in a      ditch in worksite or workshop2  Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool      & heating plate, and optional parts3  Removable PTFE coated heating plate with high accurate temperature control system4  Electrical planing tool5  Be made of lightweight and high strength material; Simple structure, small and delicate,         user friendly.6  Low starting pressure ensures reliable welding quality of small pipes7  Changeable welding position enables to weld various fittings more easily.8  Separate two-channel timer records time in soaking and cooling phases.9  High-accurate and shockproof pressure meter indicates clearer readings.Optional parts1  Stub end device for short flange stub2  Data logger. Technical parametersModel SHD250 Pipe Size(mm) 90, 110, 125, 140, 160 180, 200, 225, 250 Heating Plate Max. Temp. 270º C Temp. deviation in surface (170~250 degree) ± 7º C Pressure adjustable Ranges 0~6.3MPa Working Voltage 220V, 50Hz Heating plate power 2.1KW Planing tool r Power 1.1KW Hydraulic unit power 0.75 KW Total power 3.95 KW Weight 143Kg Packing Dimension 980× 580× 550 980× 580× 550 590× 550× 720 590× 550× 720 740× 490× 570 740× 490× 570 CertificatePACKING CASESCompanyOur company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
