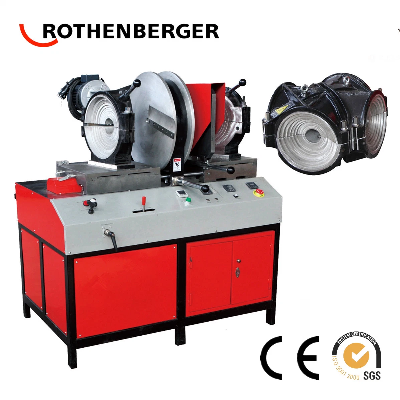

R315W Multi-Angle Workshop Butt Fusion Welding Machine

R315W  Multi-Angle Workshop Butt Fusion Welding MachineUSES and features: 1 Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE, PP, PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.2  Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.3  Removable PTFE coated heating plate.4  Electric planing tool with safety limit switch.5  Low starting pressure and high reliable seal structure.6  Separate two-channel timer records times in soaking and cooling phases.7  High-accurate and shockproof pressure meter indicates clearer readings. technical parametersSHG315Welding scope  (mm)90.110.125.140.160.180.200.225.250.280.315The welding type0-90 ° elbow, tee, cross; 45 °, 60 ° wyes(optional parts should be used)The highest temperature heating plate  (ºC)270The heating plate surface temperature difference (170-250ºC) (ºC)≤±7Use the power supply  (V,Hz)380, 50The heating plate power  (kW)5The heating plate power (kW)1.5Hydraulic total power (kW)0.75The total power  (kW)7.25The weight (not including the optional parts) (kg)884certificateCompanyOur company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
